🌡️ AC Infinity CLOUDLINE T12 – 12” Inline Duct Fan with Temperature, Humidity & VPD Smart Controller
Full Climate Control. Smart Ventilation. Silent Power.
The CLOUDLINE T12 is a heavy-duty 12” inline duct fan engineered to quietly ventilate hydroponic grow rooms, boost HVAC systems, cool AV closets, and manage odour control. Powered by a high-performance EC motor and paired with the intelligent CONTROLLER 69 PRO (WiFi-enabled), this fan offers dynamic climate automation based on temperature, humidity, and VPD. Built for professional growers and demanding applications, the T12 combines superior airflow with smart environmental control.
🌟 Key Features & Benefits
Smart Controller 69 PRO with WiFi Access 📱
Program automated responses to temperature, humidity, VPD, timers, schedules, and grow cycles. Remotely monitor and control via the AC Infinity app, view live data, set alerts, and export climate history for analysis.

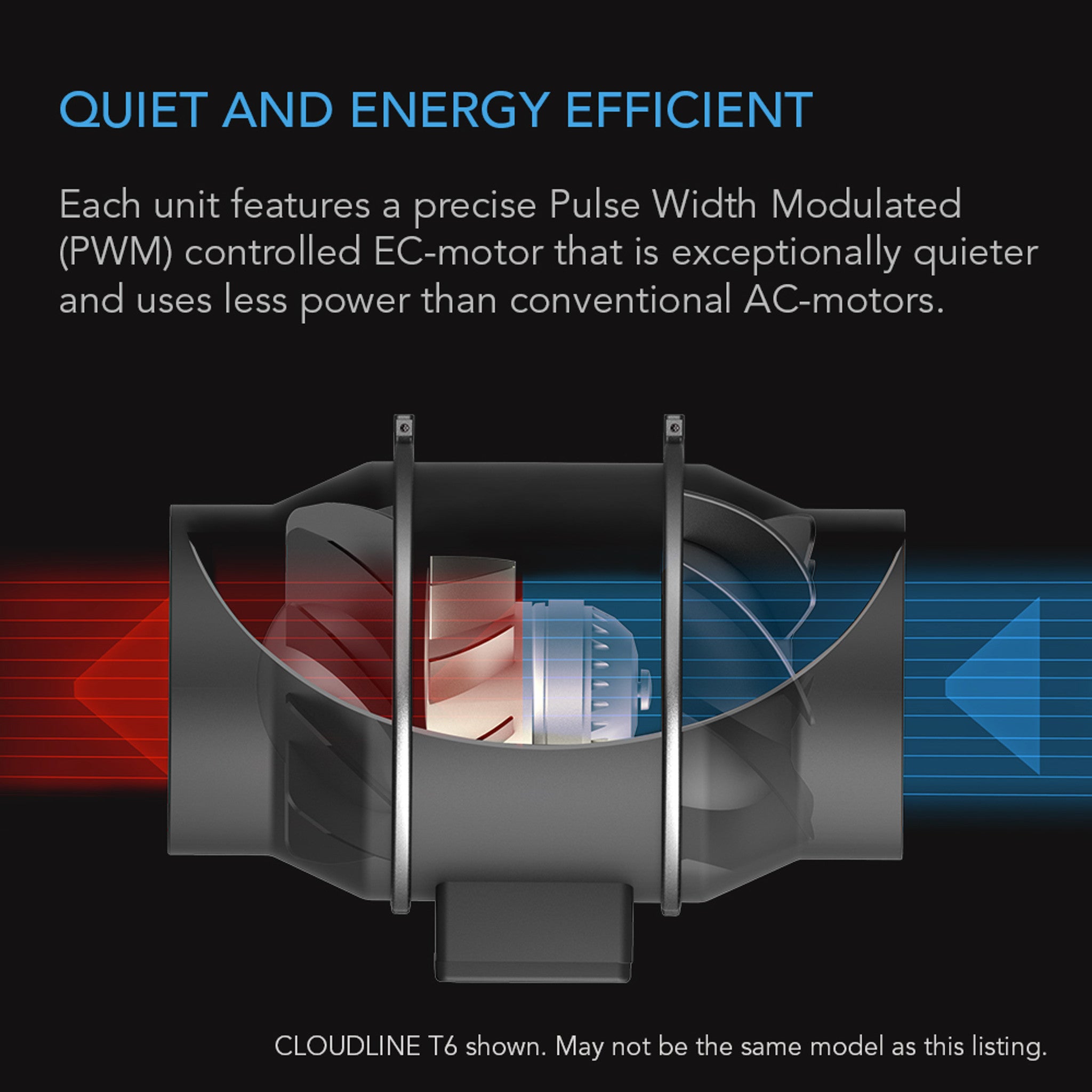

Precision EC Motor with PWM Control ⚙️
Achieve whisper-quiet operation and high energy efficiency. PWM technology enables ultra-smooth fan speed control, even at low RPMs, reducing both noise and heat output.
Mixed-Flow Impeller for Static Pressure 💨
Features a hybrid impeller with stator blades and dual hydrodynamic wind circles to ensure powerful airflow through long duct runs, carbon filters, and other resistance-heavy setups.
Tool-Free Maintenance & Flexible Mounting 🔧
The motor housing detaches easily for cleaning. Dual ball bearings rated for 67,000 hours enable both horizontal and vertical installation with consistent performance.
Dust & Splash Resistant (IP44 Rated) 🌧️
Built tough for grow tents, attics, basements, and other harsh environments. IP44 ingress protection ensures long-term reliability in dusty or damp conditions.

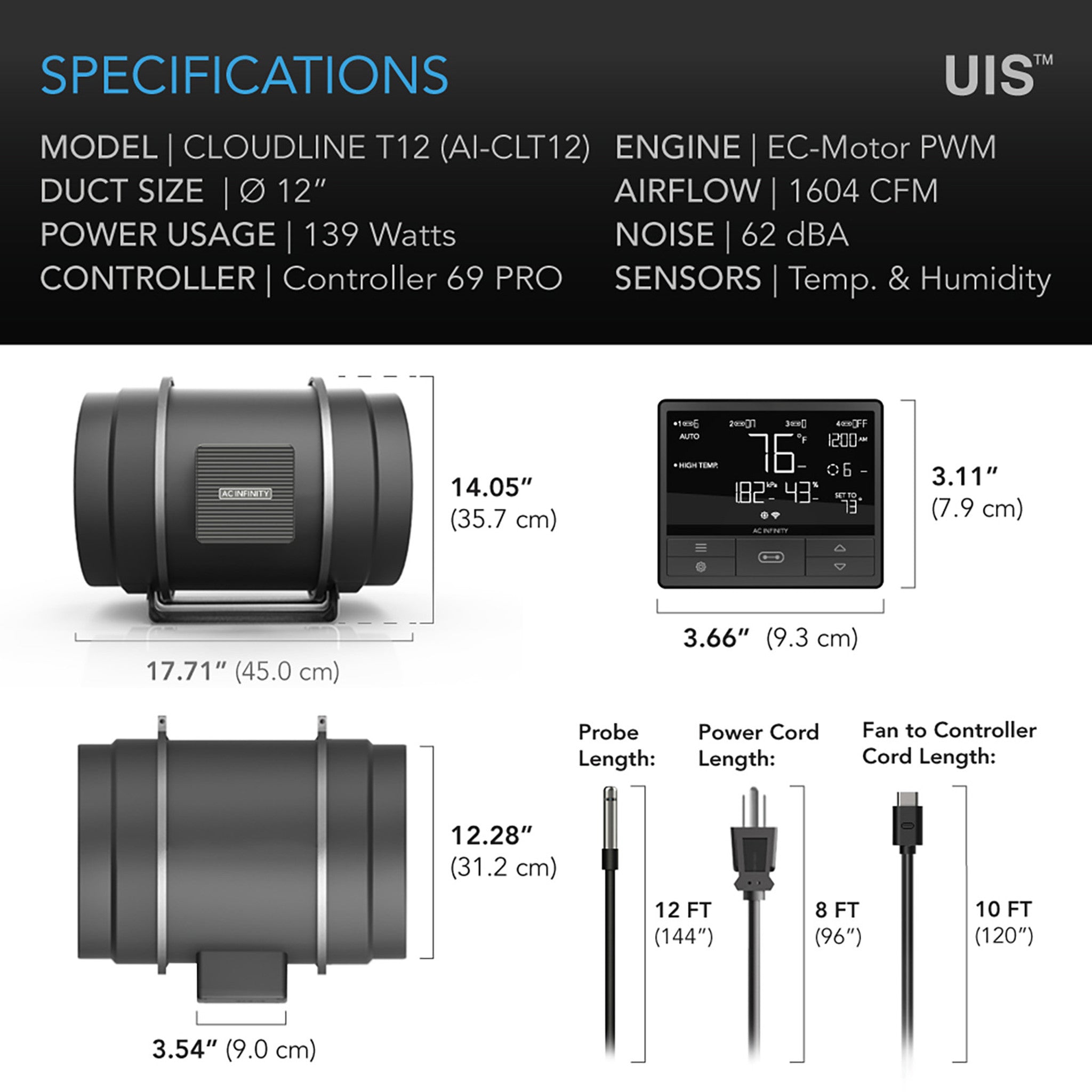

📐 Technical Specifications
Duct Size: 12”
Airflow: 1604 CFM
Noise Level: 62 dBA
Static Pressure: 818 Pa
Motor Type: EC Motor with PWM Control
Max Power Draw: 250W
Voltage: 100–240V AC
Controller Cable Length: 10 ft
Plug Cable Length: 8 ft
Sensor Probe Length: 12 ft
Ingress Protection: IP44
Mounting Positions: Horizontal or Vertical
Expected Lifetime: 67,000 Hours
📦 What’s in the Box
1 x CLOUDLINE T12 Inline Fan (12”)
1 x CONTROLLER 69 PRO (WiFi-enabled)
1 x Sensor Probe (12 ft)
Mounting Hardware & User Manual
✅ Perfect For:

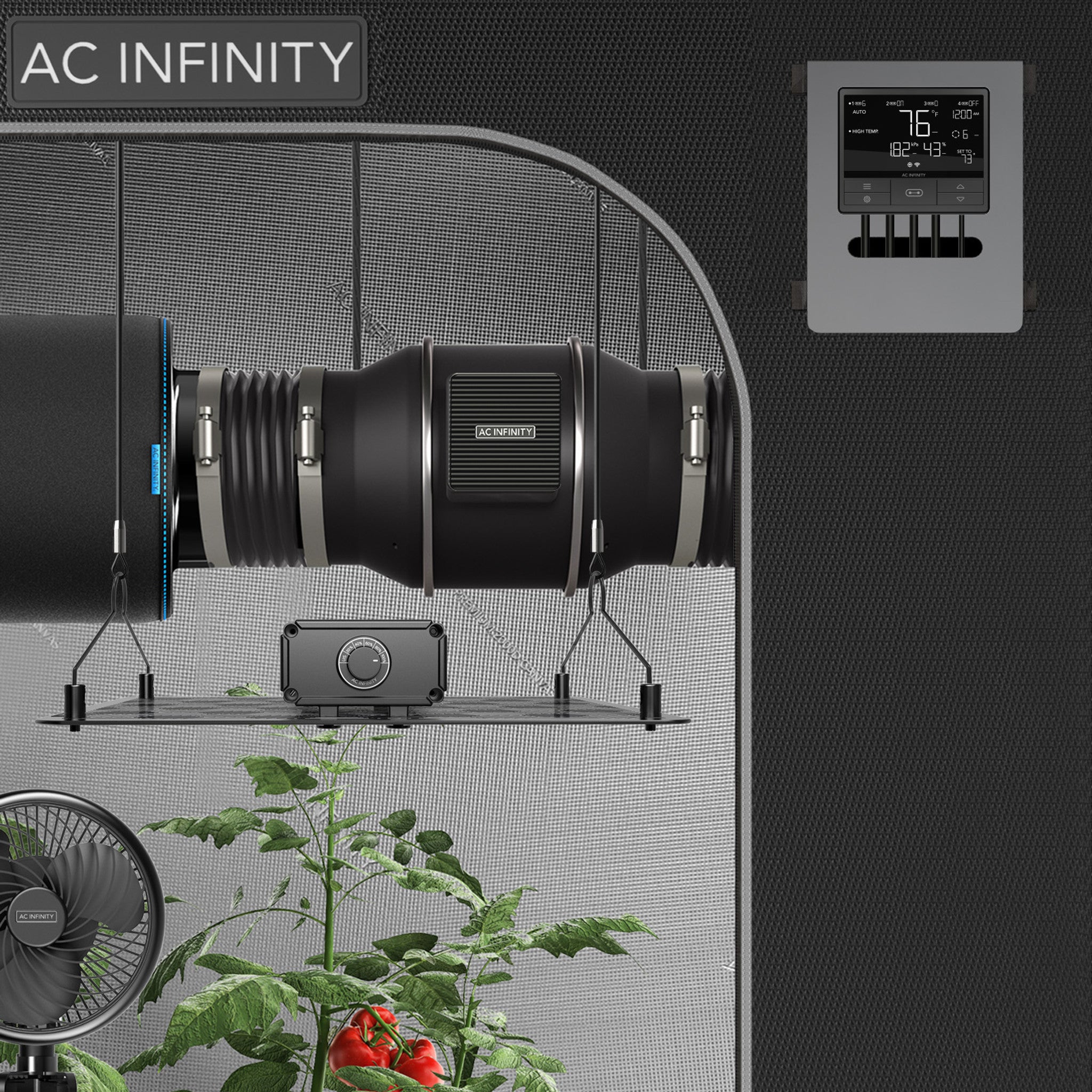

Hydroponic grow rooms & large grow tents 🌱
HVAC air transfer & room ventilation 🏠
AV closets, server racks, and cooling cabinets 💻
Carbon filter integration & industrial odour control 🚫💨
🌿 Control Big Environments with Big Airflow
Massive power. Intelligent automation. Ultra-quiet performance.
Get the CLOUDLINE T12—available now from Green Spirit Hydroponics.
