Description

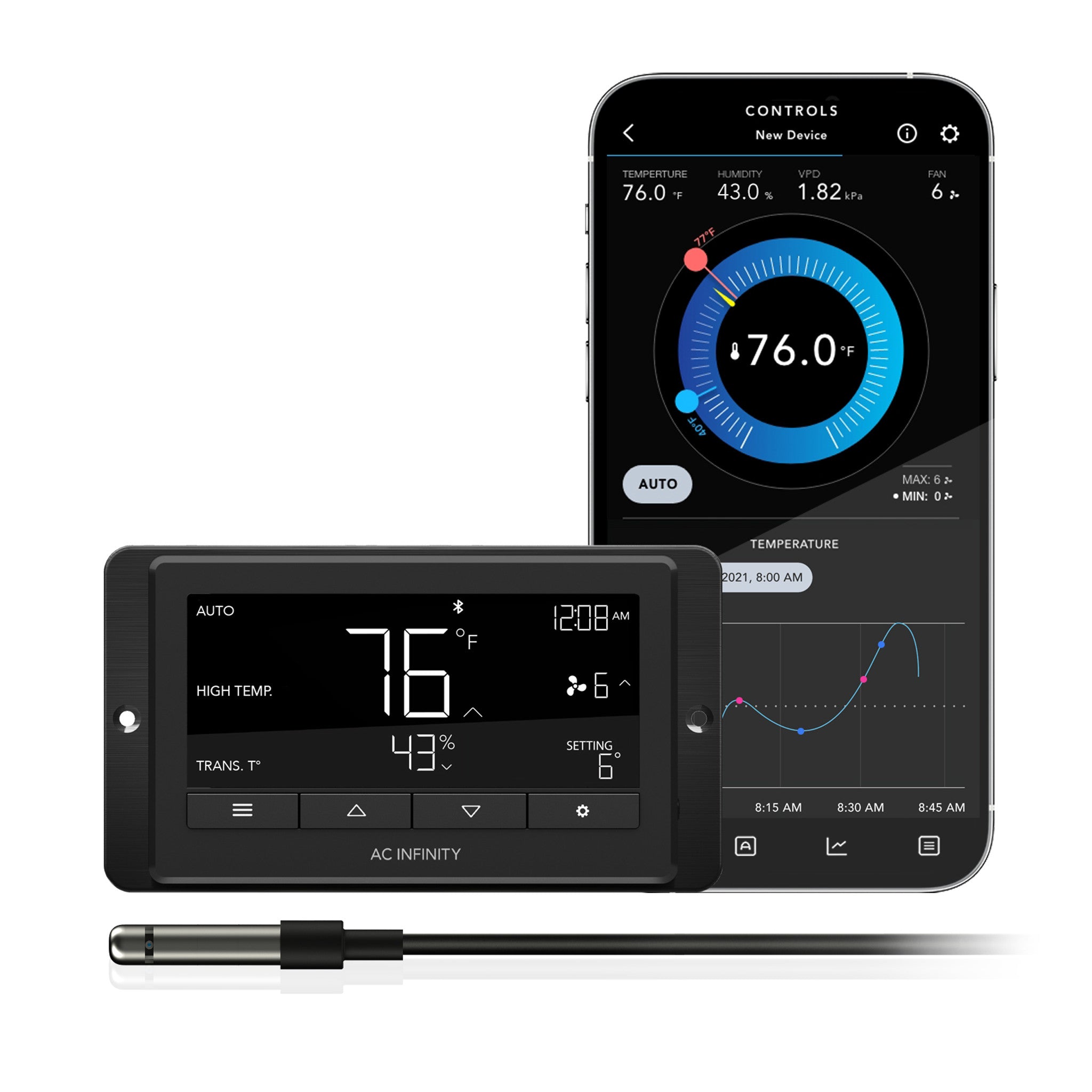

π¬οΈ AC Infinity CONTROLLER 67 β Smart Fan Controller with Temperature & Humidity Sensing
Model: CTR67A | UPC: 819137021426

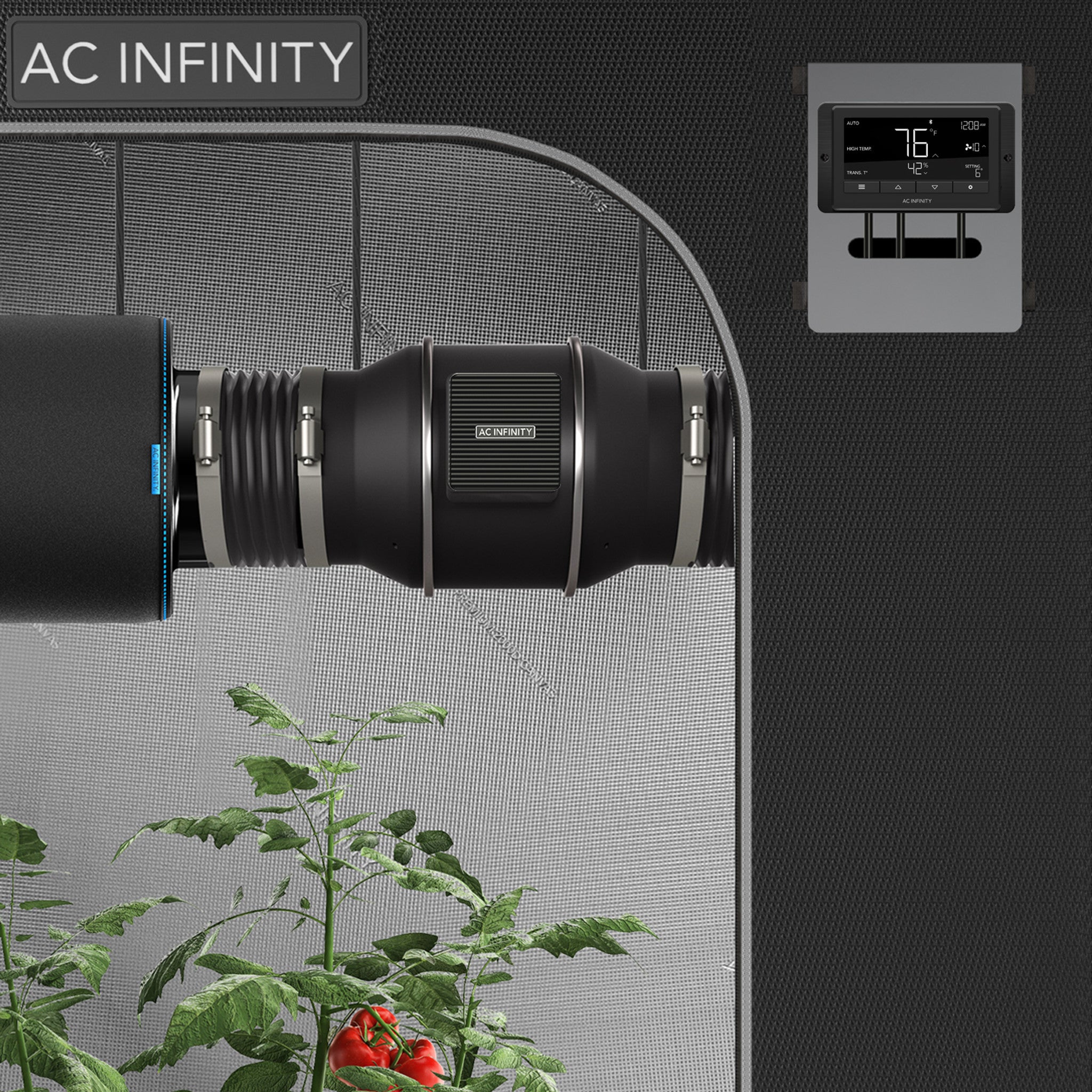

Optimize airflow and create the perfect climate with the CONTROLLER 67, a precision-engineered digital controller designed for AC Infinity EC-motor fans. Built for grow rooms, HVAC systems, and any application needing smart ventilation, this compact unit delivers reliable performance and intelligent automation.
βοΈ Key Features
-

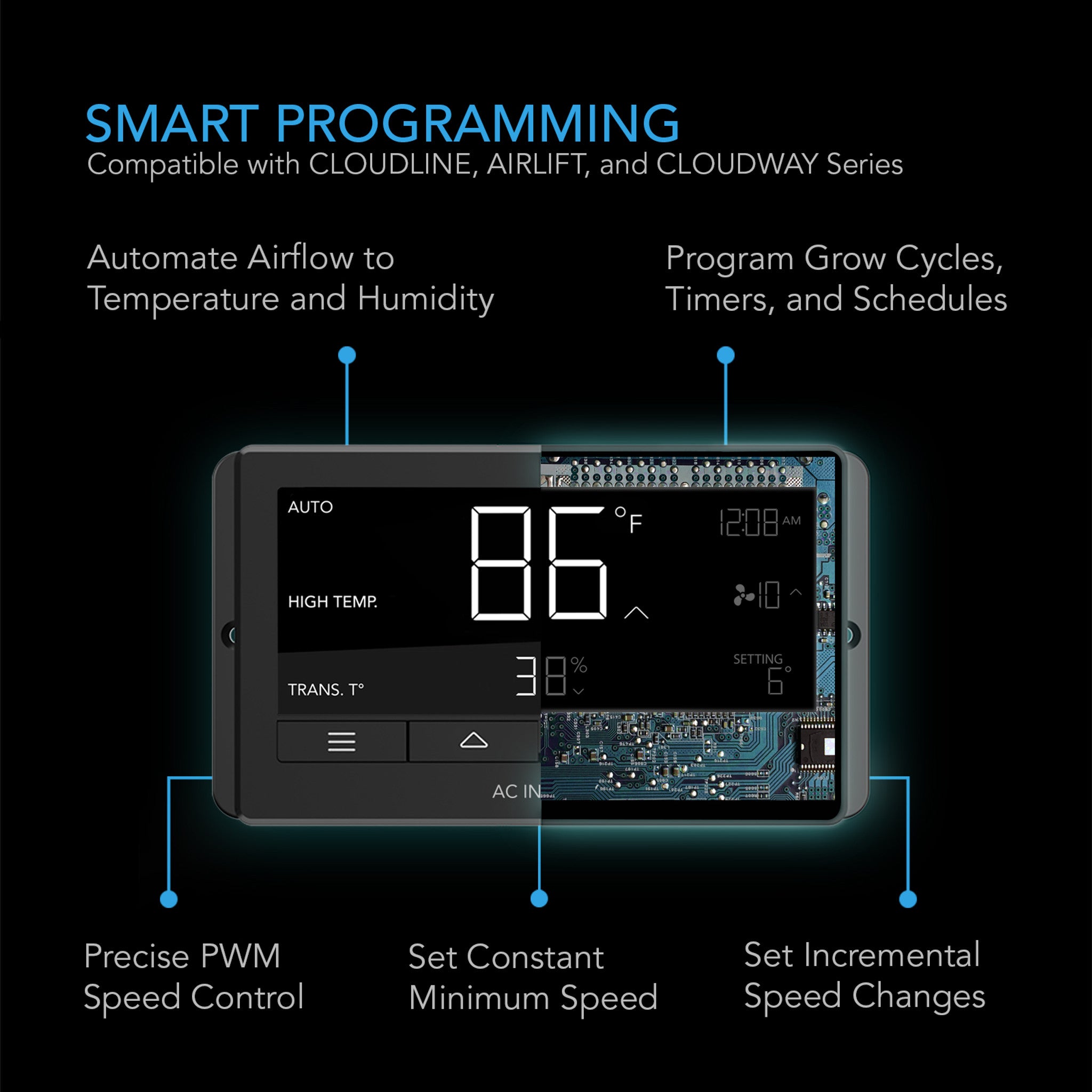

Dynamic Fan Speed Control β Adjusts fan speeds in real-time based on temperature and humidity readings.
-
Smart Climate Triggers β Automate airflow based on climate changes with flexible programming options.
-
Custom Scheduling & Timers β Set on/off cycles, minimum fan speeds, and scheduling to meet your exact needs.
-

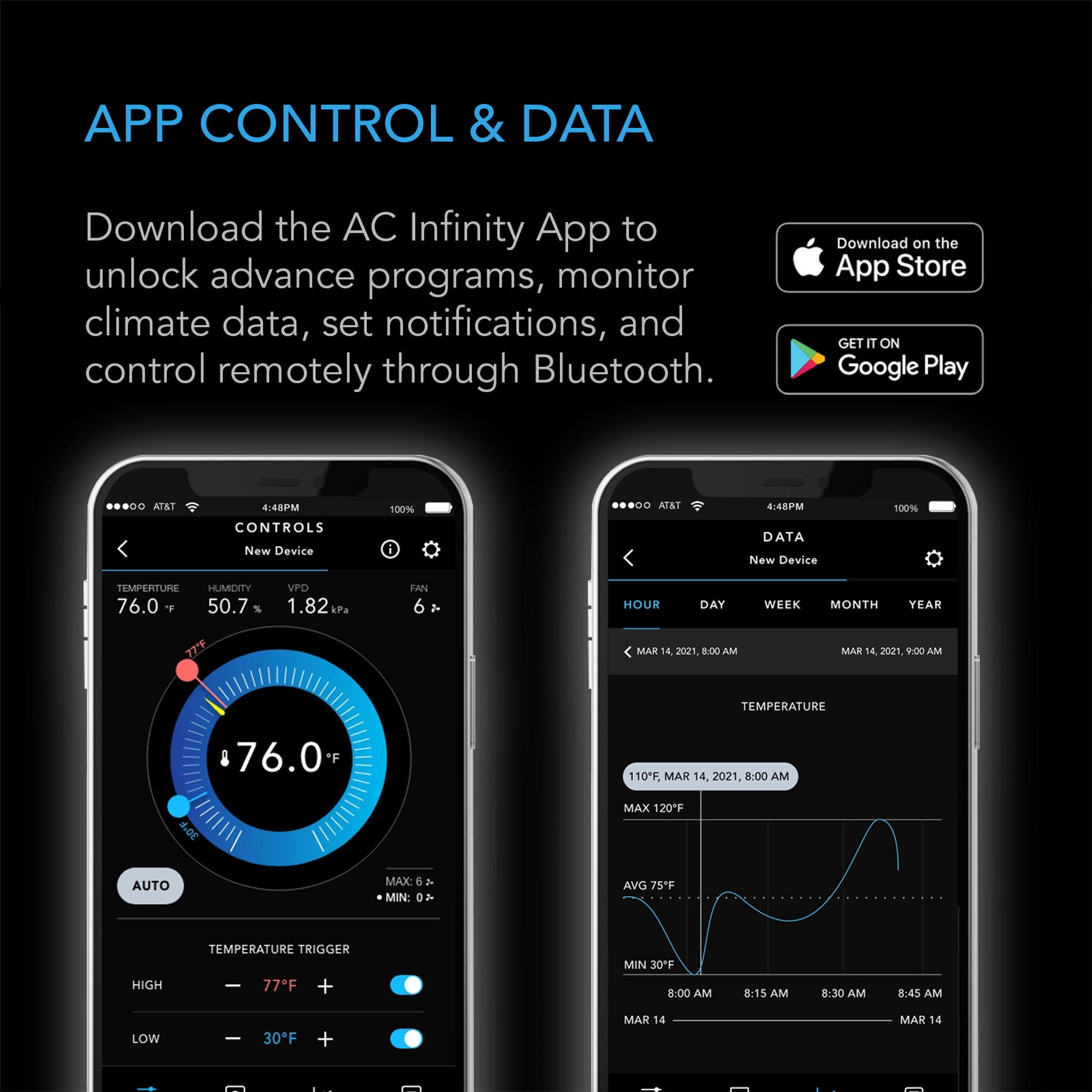

Bluetooth App Control β Connect with the AC Infinity App for remote access, detailed data logging, and advanced features.
-

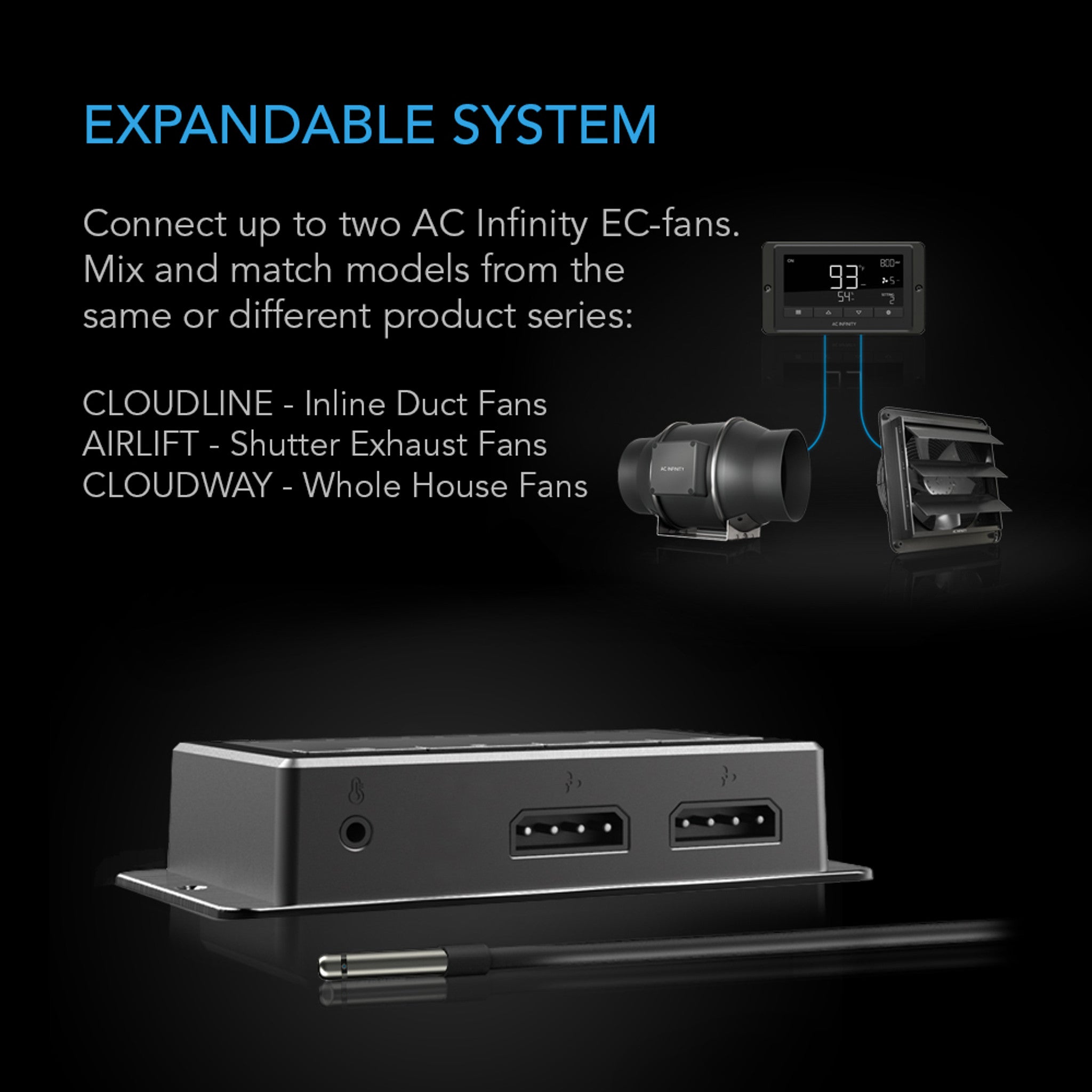

Dual Fan Support β Control up to two EC-motor fans simultaneously with shared programming from one controller.
π Precision Sensor Technology

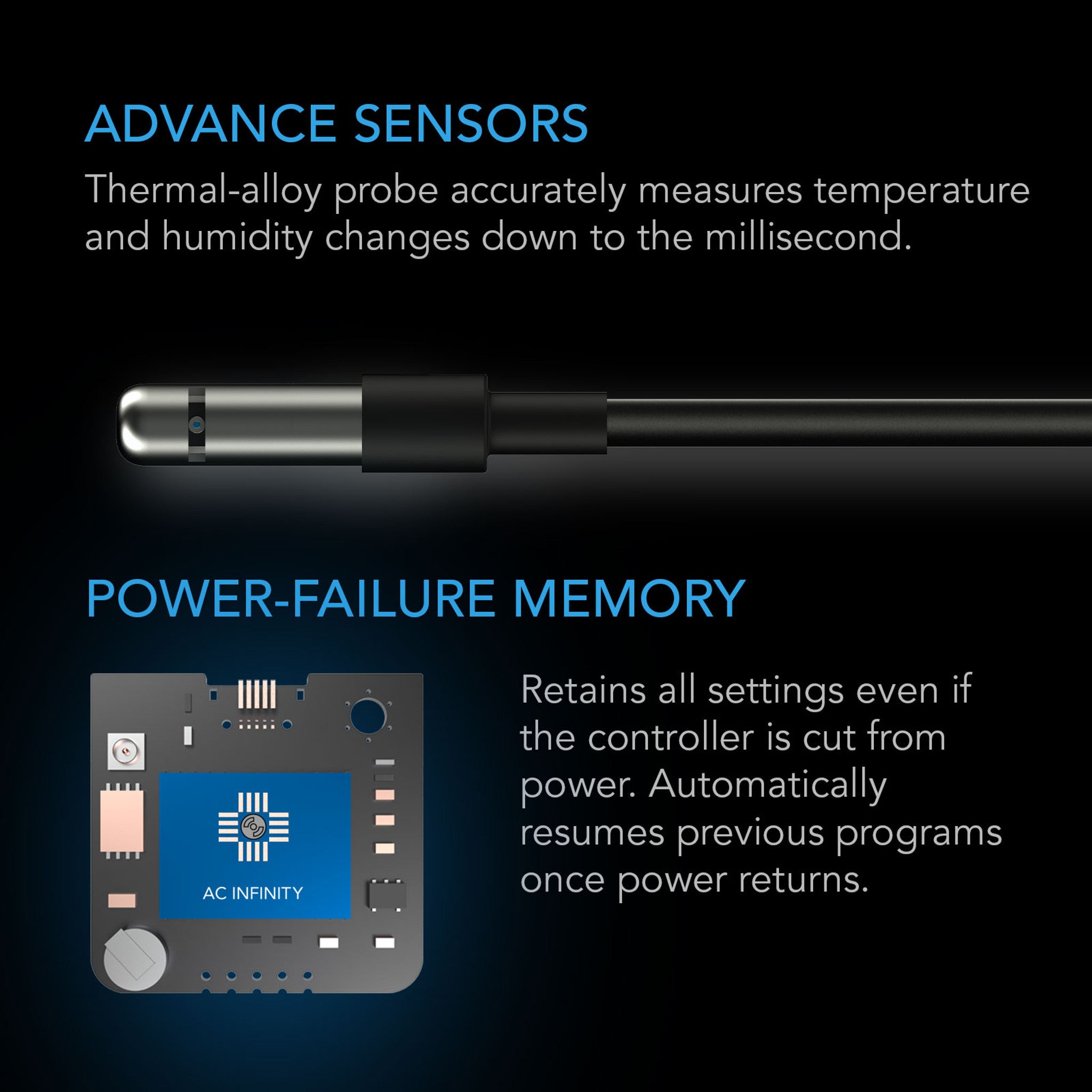

Equipped with a 12-foot waterproof probe, the controller measures temperature and humidity with high accuracy, adapting your fans accordingly to maintain a stable and optimal environment. The LCD screen includes brightness adjustment options and reads in Fahrenheit or Celsius.
π Compatibility
The CONTROLLER 67 uses 4-pin Molex connectors and is designed to integrate seamlessly with AC Infinityβs ecosystem of EC-motor devices, including:
-
CLOUDLINE Series β Inline Duct Fans
-
AIRLIFT Series β Shutter Exhaust Fans
-
CLOUDWAY Series β Whole House Fans
-
CLOUDRAY Series β Circulation Fans (when used with a Molex adapter)
This controller is also part of the UISβ’ (Universal Infinity System), making it interoperable with other AC Infinity smart grow components.

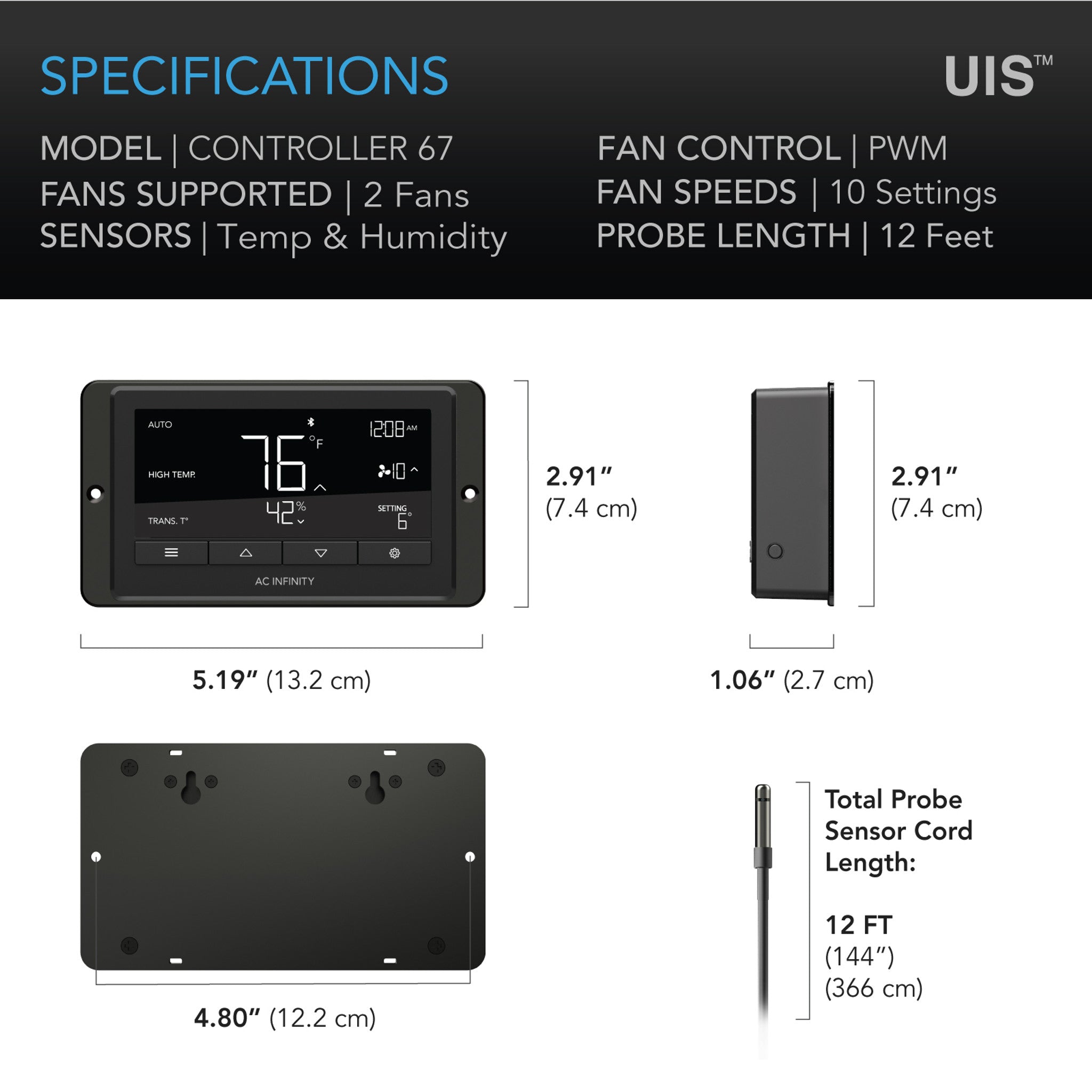

π Specifications
| Feature | Detail |
|---|---|
| Max Devices Controlled | 2 EC-Motor Fans |
| Programming Range | 32 β 140Β°F (0 β 60Β°C) |
| Sensor Probe Length | 12 ft. (144 in. / 365.76 cm) |
| Power Consumption | 1 W (0.1 A) |
| Power Input | 12V from Connected Device |
| Connectivity | Bluetooth (via AC Infinity App) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Mounting Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Operating Humidity | 35 β 85% RH |
π Smarter Fan Control Starts Here
From managing airflow in grow tents to keeping HVAC systems balanced, the CONTROLLER 67 is your go-to for hands-free, reliable environmental management.
