🌬️ AC Infinity CLOUDLINE S10 – 10” Quiet Inline Duct Fan with Speed Controller
Maximum Airflow. Minimal Noise. Built for Grow Tent Performance.
The AC Infinity CLOUDLINE S10 is a high-performance 10” inline duct fan engineered to deliver exceptional airflow in hydroponic grow tents, greenhouses, home ventilation systems, AV closets, and more. This powerhouse of a fan pushes an impressive 1201 CFM of air while staying remarkably quiet at just 48 dBA, thanks to its precision EC motor controlled by PWM (Pulse Width Modulation) technology. Whether you’re controlling humidity in a large grow room or moving air through long ducts with carbon filters, the S10 delivers reliable and silent operation you can count on.
💡 Key Features & Benefits

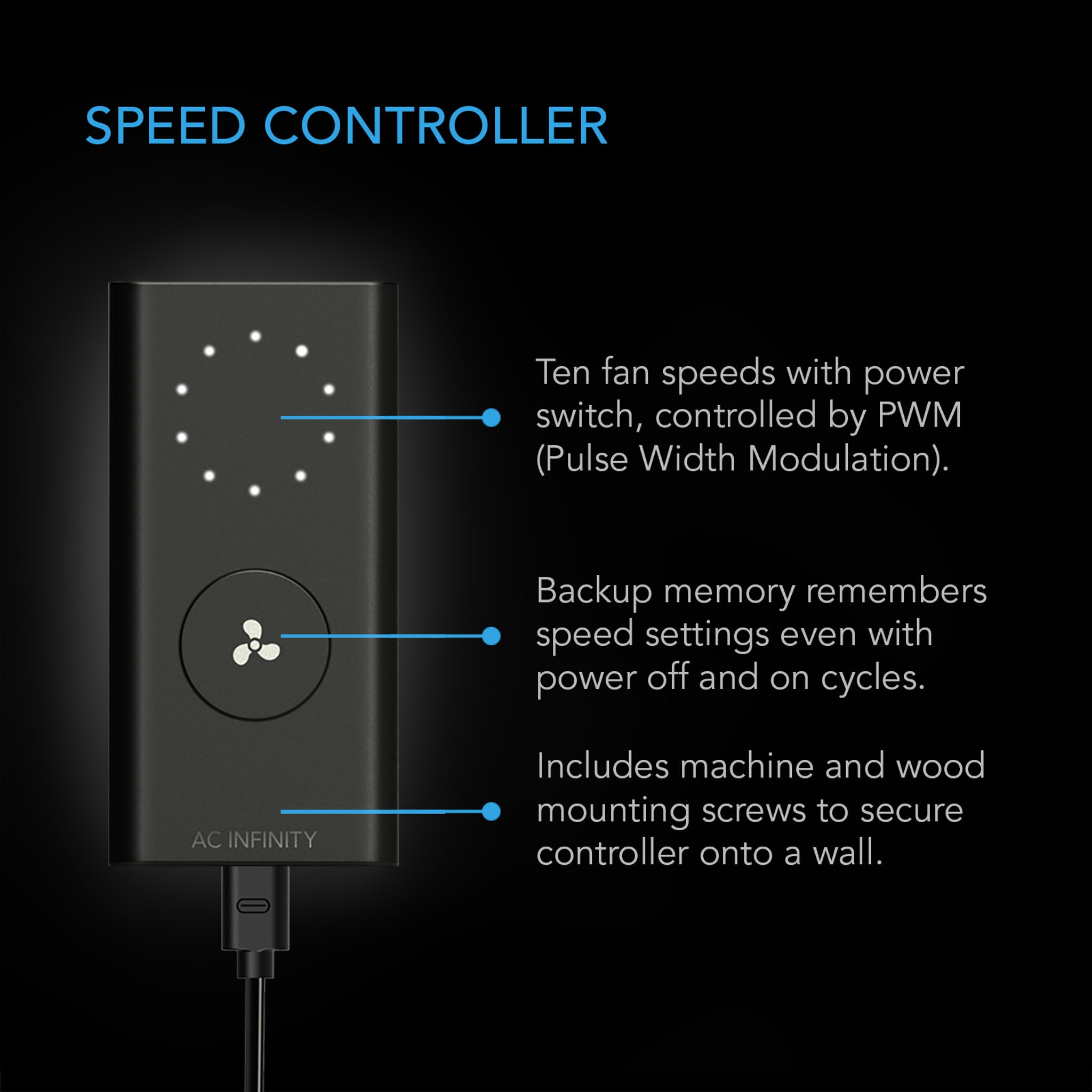

🔟-Speed Wired Controller
Manually dial in your airflow with ten precise speed settings. Fine-tune your grow tent ventilation or climate control to maintain optimal temperatures and airflow, whether you're working with carbon filters, long duct runs, or tight airflow restrictions.

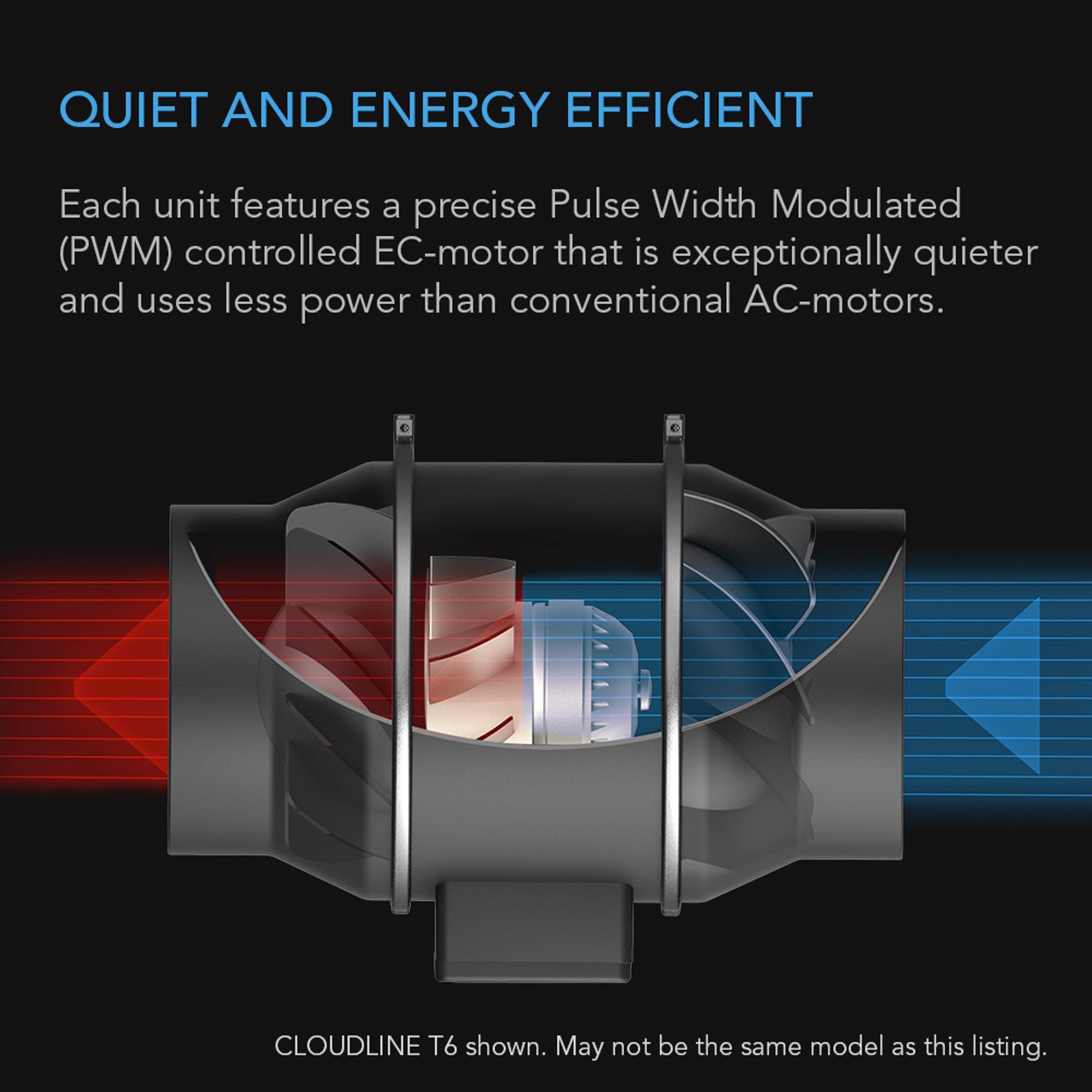

Whisper-Quiet EC Motor with PWM Control 🤫
Enjoy smooth, low-RPM operation with minimal motor noise and heat. PWM technology ensures energy efficiency and silent performance, even when running 24/7 in sensitive grow environments.
Mixed Flow Design for High Static Pressure Applications 💨
Featuring stator blades and dual hydrodynamic wind circles, the CLOUDLINE S10 is designed to excel where air movement is restricted—perfect for rooms with filters, bends, or resistance-heavy ducts.
Tool-Free Maintenance & Easy Mounting 🔧
The detachable motor housing makes cleaning and servicing simple. Dual ball bearings rated for 67,000 hours allow for both horizontal or vertical mounting, offering full installation flexibility.
Dust and Splash Resistant (IP44 Rated) 🌧️
Tough enough for indoor grow spaces, attics, and garages, the CLOUDLINE S10 resists moisture and dust for long-term reliability.

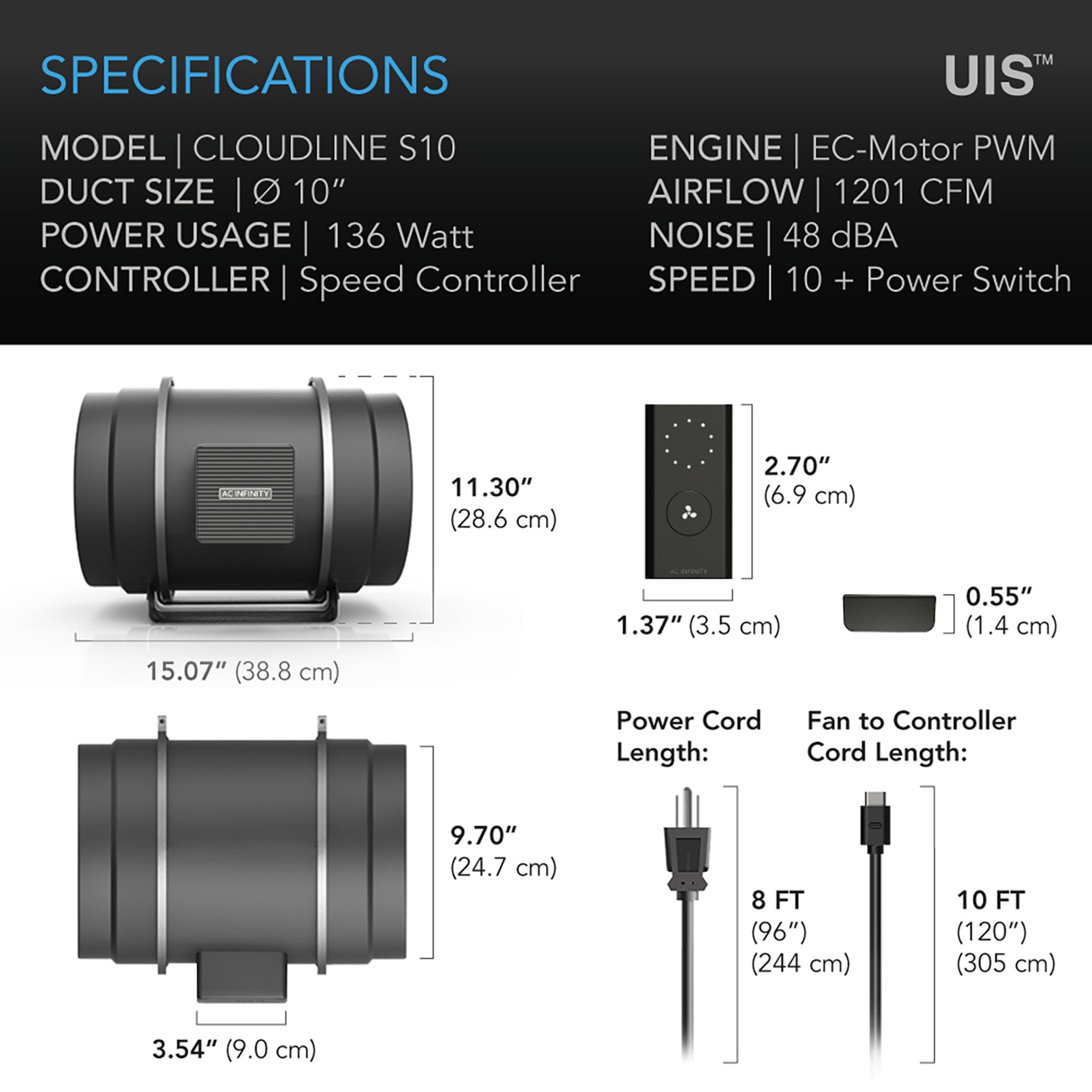

📐 Technical Specifications
-
Duct Size: 10”
-
Airflow: 1201 CFM
-
Noise Level: 48 dBA
-
Static Pressure: 1059 Pa
-
Motor Type: PWM-Controlled EC Motor
-
Max Power Draw: 255W
-
Voltage: 100–240V AC
-
Operating Temp: 32–140°F
-
Humidity Range: 35–85% RH
-
Ingress Protection: IP44
-
Expected Lifetime: 67,000 Hours
-
Mounting: Horizontal or Vertical
-
Controller Cable: 10 ft
-
Plug Cable: 8 ft
-
Plug Type: US (NEMA 1-15 Type A)
📦 Included in the Box
-
1 x CLOUDLINE S10 Inline Fan (10”)
-
1 x Wired 10-Speed Fan Controller
-
Mounting Hardware & User Manual
✅ Perfect For:
-
Large hydroponic grow tents & greenhouses 🌱
-
HVAC boosting and home air circulation 🏠
-
AV rack, server cabinet, or closet cooling 💻
-
Carbon filter systems & odour removal setups 🚫💨
-
Quiet ventilation for grow lights and sensitive electronics 🔇
🌱 Green Spirit Hydroponics Recommends:
The CLOUDLINE S10 is your go-to solution for maximum airflow in large-scale grow environments without the noise or heat of traditional AC fans. A must-have for growers who demand power, control, and peace of mind.
