Description
🌀 AC Infinity CLOUDLINE S12 – 12” Inline Duct Fan with 10-Speed Manual Controller
Powerful Ventilation. Smooth Operation. Pro Performance.
The CLOUDLINE S12 is a high-performance 12” inline duct fan engineered to deliver strong, quiet airflow for hydroponic grow tents, HVAC systems, server racks, and odour control applications. Equipped with a precision EC motor and a 10-speed fan controller, the S12 offers ultra-reliable manual speed control without sacrificing performance. Perfect for high-demand environments where consistent airflow and low noise are essential.
🌟 Key Features & Benefits
Manual 10-Speed Fan Controller 🎛️
Set and fine-tune your fan’s speed with precision using the included wired controller. Adjust airflow to match your environment’s needs, with memory backup to retain settings after power loss. Also compatible with UIS™ controllers for future smart upgrades.

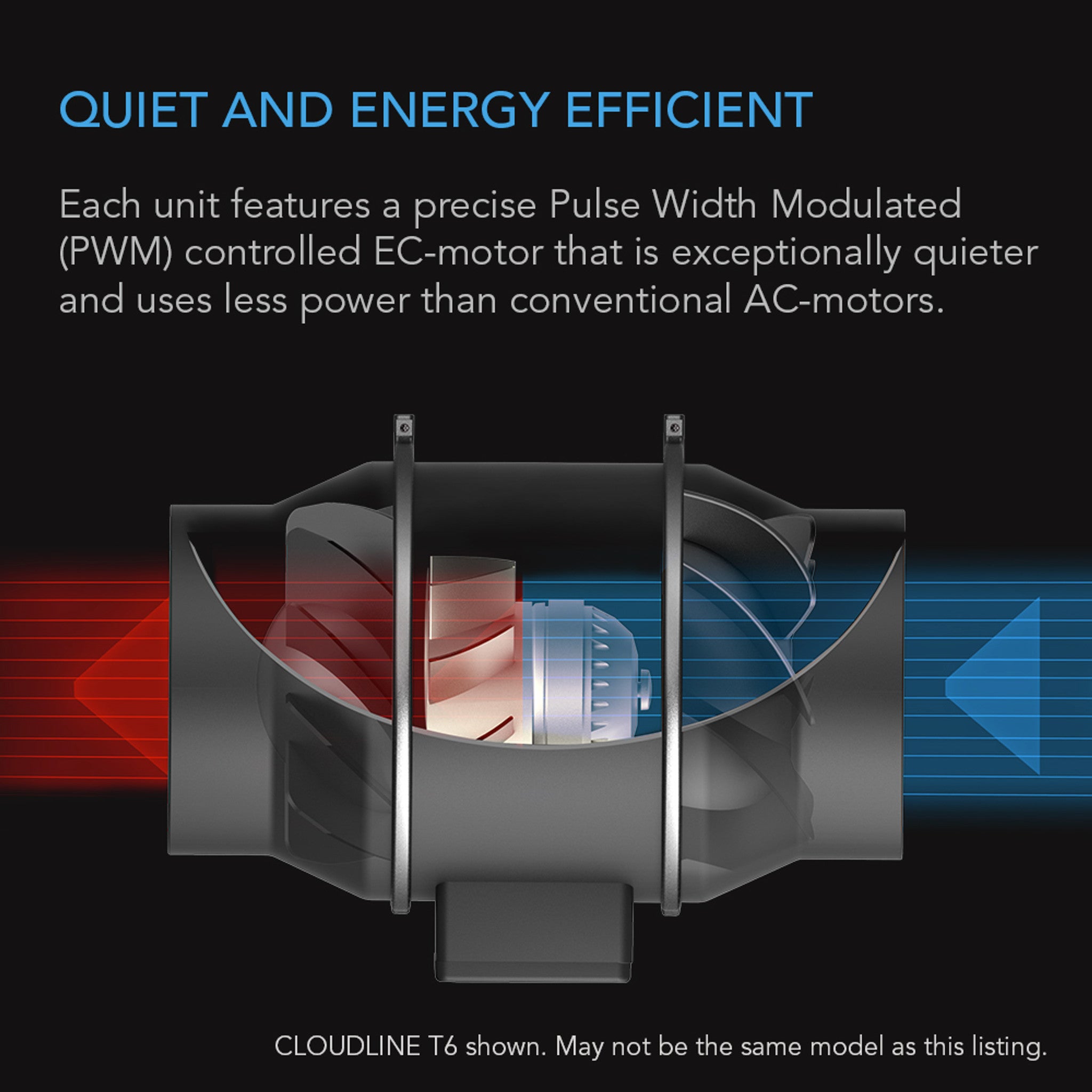

EC Motor with PWM Technology ⚙️
Enjoy whisper-quiet operation and energy savings. The S12’s electronically commutated motor uses Pulse Width Modulation for smooth low-RPM performance with reduced heat and noise output.
Mixed-Flow Design for High Resistance 💨
Built with stator blades and hydrodynamic wind circles, this fan moves air efficiently through carbon filters, ducting, and static pressure-heavy setups—ideal for serious ventilation challenges.
Maintenance-Friendly & Durable 🔧
A detachable motor box allows quick access for cleaning and service. Dual ball bearings rated for 67,000 hours support both horizontal and vertical mounting positions.
IP44 Rated for Harsh Environments 🌧️
Dust- and splash-resistant housing makes the CLOUDLINE S12 a top choice for grow tents, basements, attics, and industrial environments.

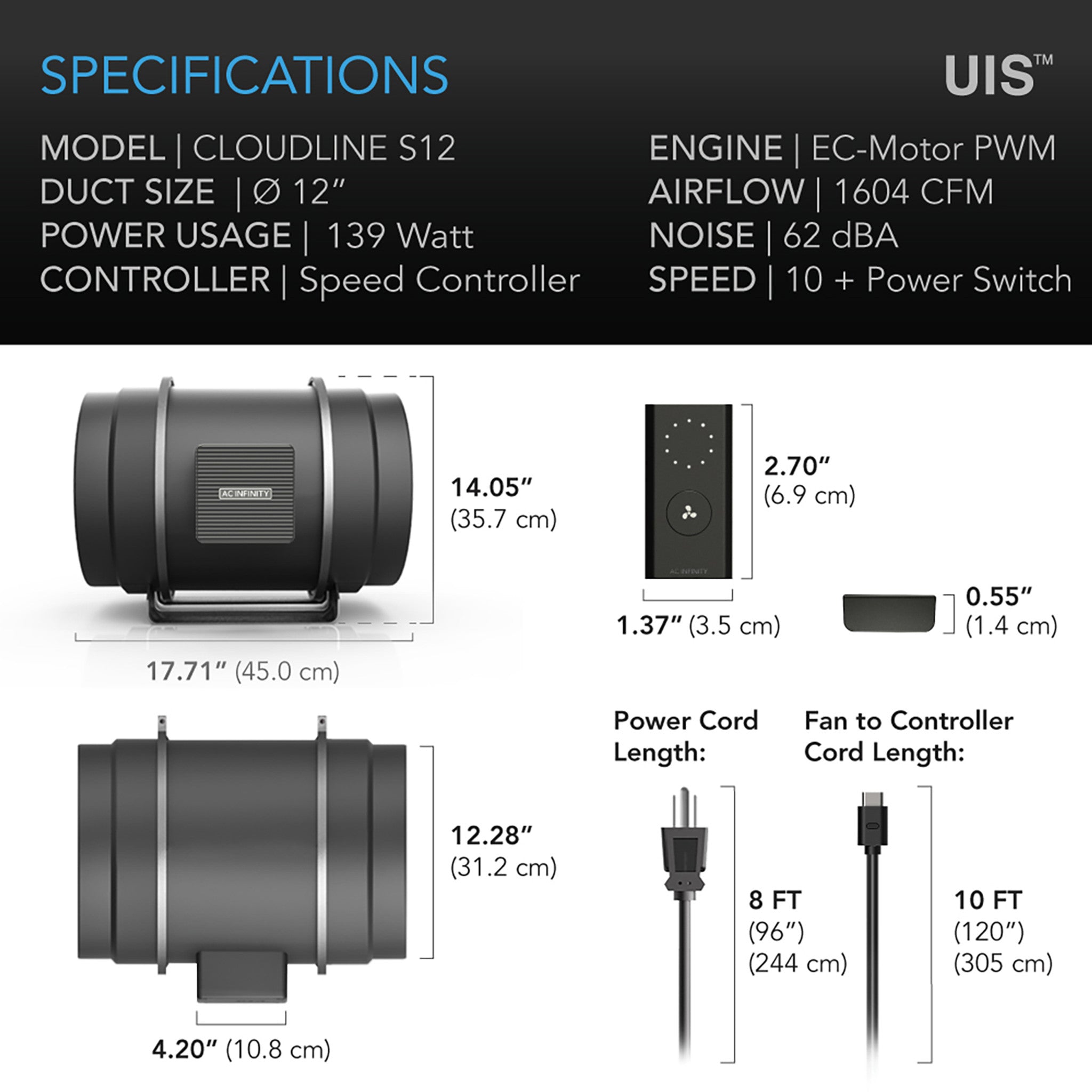

📐 Technical Specifications
Duct Size: 12”
Airflow: 1604 CFM
Noise Level: 62 dBA
Static Pressure: 818 Pa
Motor Type: EC Motor with PWM Control
Max Power Draw: 250W
Voltage: 100–240V AC
Controller Cable Length: 10 ft
Plug Cable Length: 8 ft
Ingress Protection: IP44
Mounting Positions: Horizontal or Vertical
Expected Lifetime: 67,000 Hours
📦 What’s in the Box
1 x CLOUDLINE S12 Inline Fan (12”)
1 x 10-Speed Wired Fan Controller
Mounting Hardware & User Manual
✅ Perfect For:
Hydroponic grow rooms & tents 🌱
HVAC and whole-home ventilation 🏠
AV closets, server racks, and data cabinets 💻
Carbon filters & odour control setups 🚫💨
🌬️ Quiet Strength, Built for Bigger Jobs
No frills, just powerful airflow and total reliability.
Experience the CLOUDLINE S12—available now from Green Spirit Hydroponics.
