Description

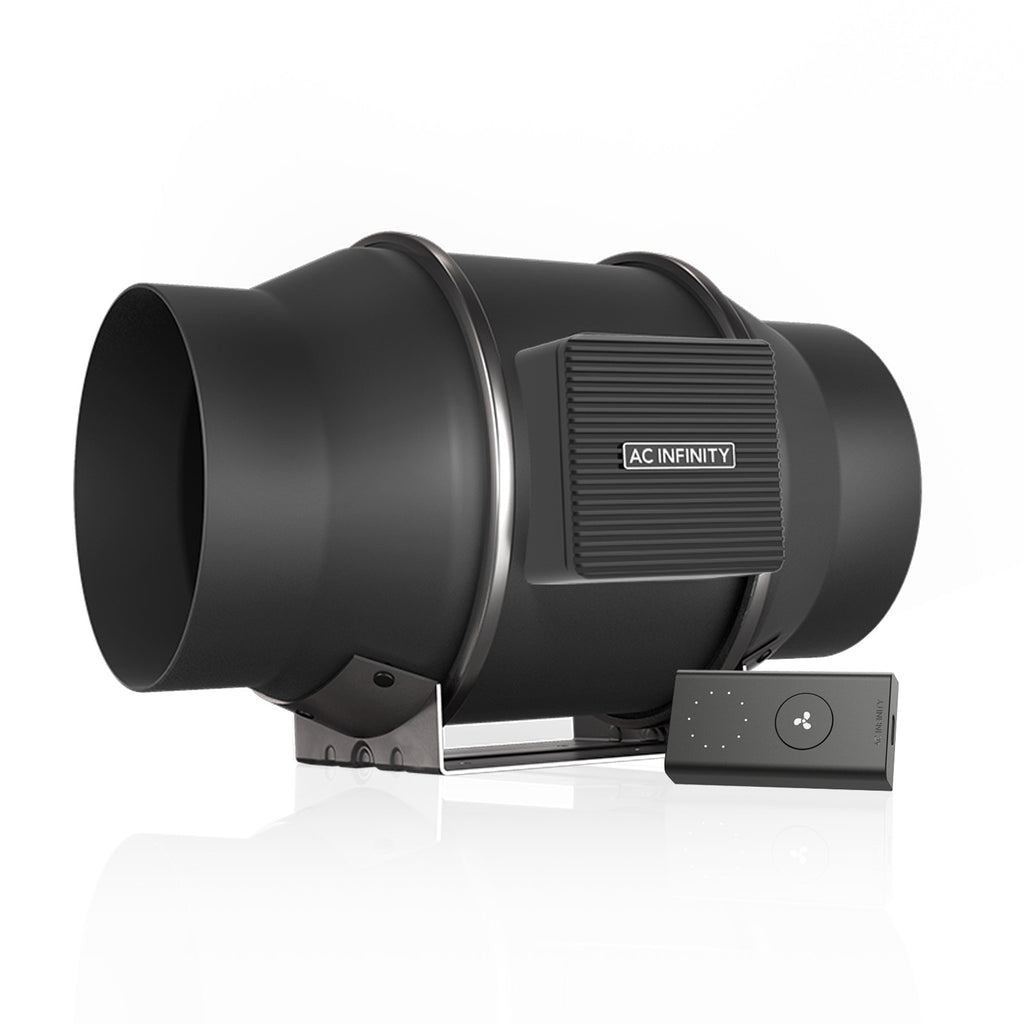

🌬️ AC Infinity CLOUDLINE S6 – 6” Inline Duct Fan with Speed Controller
Intelligent Design. Whisper-Quiet Power.
The CLOUDLINE S6 is a smart, 6” inline fan engineered to ventilate grow tents, AV closets, and indoor spaces with high static pressure and ultra-quiet efficiency. Packed with a PWM-controlled EC motor, this unit delivers precision airflow with minimal noise—even in restrictive ducting systems.
Includes a 10-speed wired controller and is fully compatible with UIS smart control systems for seamless integration and future expansion.
Whether you're boosting airflow for your plants or cooling sensitive electronics, the CLOUDLINE S6 is built to perform, quietly and reliably.
🌟 Key Features & Benefits
-
Advanced EC Motor with PWM Control 🔇⚡
Experience smooth, energy-efficient performance at all speeds with virtually no motor noise—perfect for silent environments. -
10-Speed Wired Fan Controller 🎛️
Fine-tune your airflow with ten selectable speeds, power memory, and responsive fan control. Ready to upgrade? The S6 is fully compatible with all AC Infinity UIS™ controllers, including smart options like CONTROLLER 67 and 69. -
Mixed-Flow Impeller for Static Pressure 💨
Designed with dual hydrodynamic wind circles and stator blades to maintain airflow in high-resistance setups—ideal for use with carbon filters or long duct runs. -
Tool-Free Maintenance & Universal Mounting 🔧
Detachable motor housing makes cleaning simple. Mount horizontally or vertically with dual ball bearings rated for 67,000 hours of operation. -
Dust & Splash Resistant – IP44 Rated 💧
Built to handle grow room conditions, attics, and tough ventilation scenarios without skipping a beat.
📐 Tech Specs at a Glance
-
Duct Size: 6”
-
Airflow: 402 CFM
-
Noise Level: 32 dBA
-
Static Pressure: 503 Pa
-
Motor Type: EC Motor with PWM Control
-
Max Power Draw: 70W
-
Voltage: 100–240V AC
-
Ingress Protection: IP44 (dust/splash resistant)
-
Mounting Positions: Horizontal or Vertical
-
Life Expectancy: 67,000 Hours
📦 What’s in the Box
-
1 x CLOUDLINE S6 Inline Fan (6")
-
1 x Wired 10-Speed Fan Controller
-
Mounting Hardware & Installation Manual
✅ Perfect For:
-
Grow tents & indoor gardens 🌱
-
HVAC air transfer projects 🌀
-
AV rack or closet cooling 🎛️
-
Odour control with carbon filters 🚫💨
🔧 Performance Meets Smart Compatibility.
Upgrade your airflow with the CLOUDLINE S6 from Green Spirit Hydroponics.
| Feature / Model | A6 – Basic | S6 – Pro | T6 – Smart |
|---|---|---|---|
| Airflow (CFM) | 352 CFM | 402 CFM | 402 CFM |
| Noise Level | 34 dBA | 32 dBA | 32 dBA |
| Static Pressure | 394 Pa | 503 Pa | 503 Pa |
| Speed Control | 10-Speed Dial | 10-Speed Dial | Dynamic (via Smart Controller) |
| Controller Type | Basic Wired Dial | Smart Speed Controller | CONTROLLER 69 PRO (WiFi, VPD, Humidity, Temp) |
| Smart WiFi App Access | ❌ | ❌ | ✅ |
| Humidity & VPD Monitoring | ❌ | ❌ | ✅ |
| Custom Schedules / Cycles | ❌ | Limited | ✅ |
| EC Motor (PWM Controlled) | ✅ | ✅ | ✅ |
| UIS™ Compatible | ✅ | ✅ | ✅ |
| Mounting Options | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical |
| IP Rating | IP44 | IP44 | IP44 |
| Fan Bearings | Dual Ball | Dual Ball | Dual Ball |
| Lifespan | 67,000 Hours | 67,000 Hours | 67,000 Hours |
