Description
🌡️ AC Infinity CLOUDLINE T6 – 6” Inline Duct Fan with Temperature, Humidity & VPD Controller
Full Climate Control. Smart Ventilation. Silent Power.
The CLOUDLINE T6 is AC Infinity’s flagship 6” inline fan, engineered for growers and AV enthusiasts who demand silent performance and advanced automation. This high-tech duct fan features a PWM-controlled EC motor and an industry-leading Controller 69 PRO, giving you dynamic climate programming, WiFi control, VPD monitoring, and more—all in one package.
From grow tents to server racks, bathrooms to attics, the T6 delivers whisper-quiet power and intelligent ventilation wherever you need it.
🌟 Key Features & Benefits
-

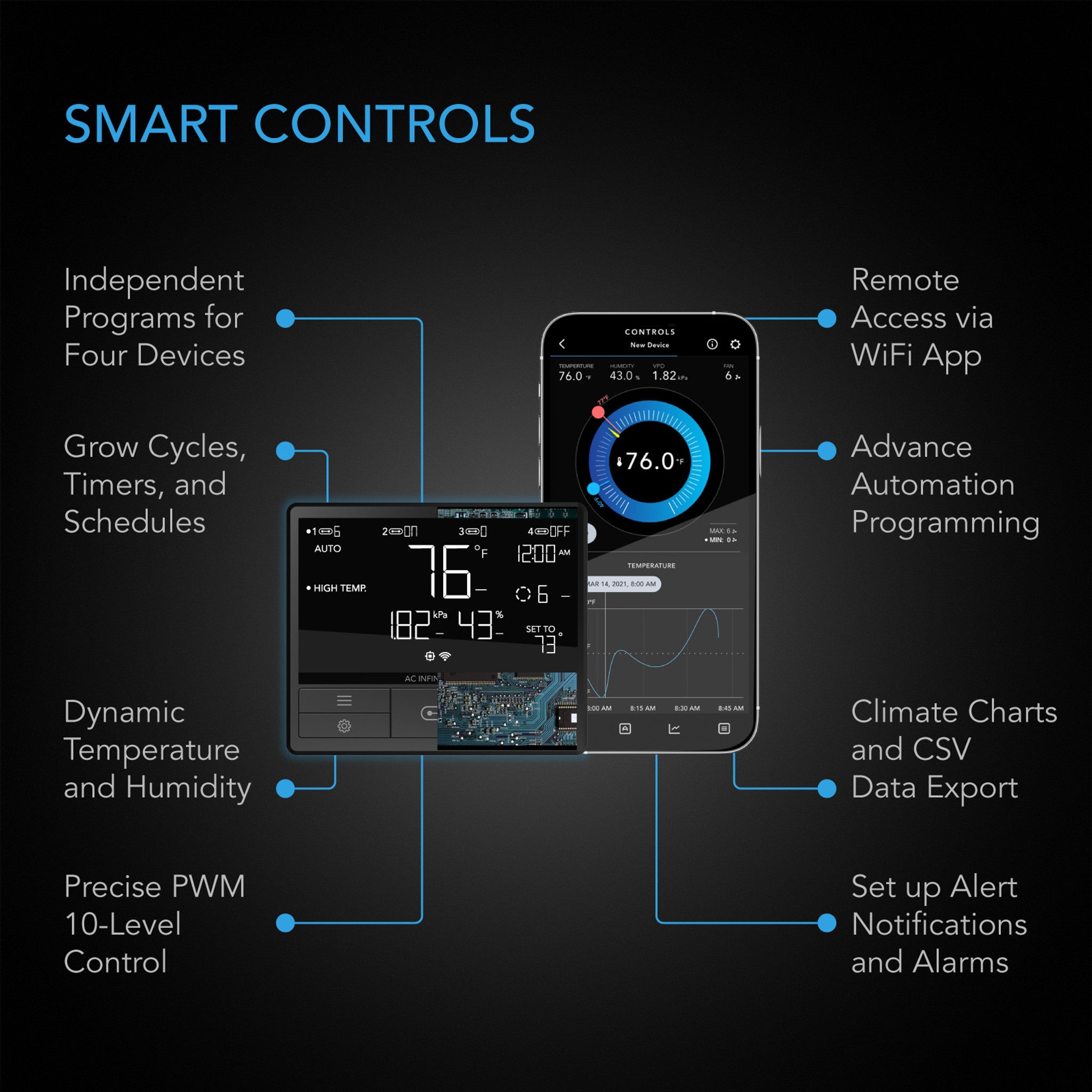

Smart Controller 69 PRO with WiFi Access 📱
Set dynamic fan speeds based on temperature, humidity, VPD, grow cycles, timers, and schedules. Access historical data, receive mobile alerts, and control your fan remotely using the AC Infinity app. -

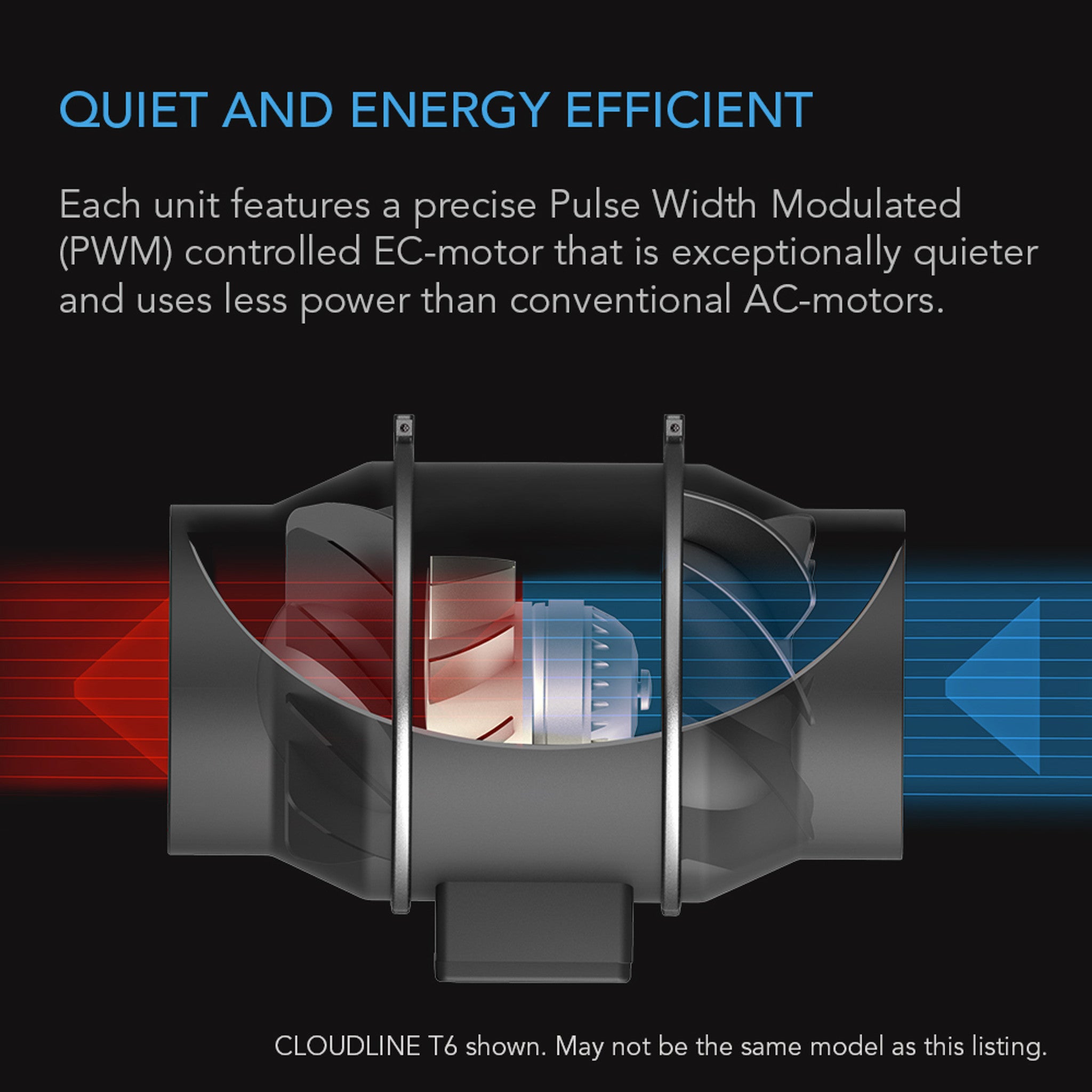

Precision EC Motor with PWM Control ⚙️
Enjoy ultra-quiet, energy-efficient operation at all speeds. EC motors outperform traditional AC fans with smooth RPM control and significantly lower noise. -
Mixed-Flow Impeller for High Static Pressure 💨
Dual hydrodynamic wind circles and stator blades ensure powerful airflow—even in ducting systems with filters or resistance. -
Tool-Free Maintenance & Versatile Mounting 🔧
Detachable impeller housing for easy cleaning. Dual ball bearings support horizontal or vertical installation—rated for 67,000 hours of use. -
Dust & Water-Resistant (IP44 Rated) 🌧️
Built tough for grow rooms and harsh environments, the T6 thrives in high humidity and particulate-heavy conditions.

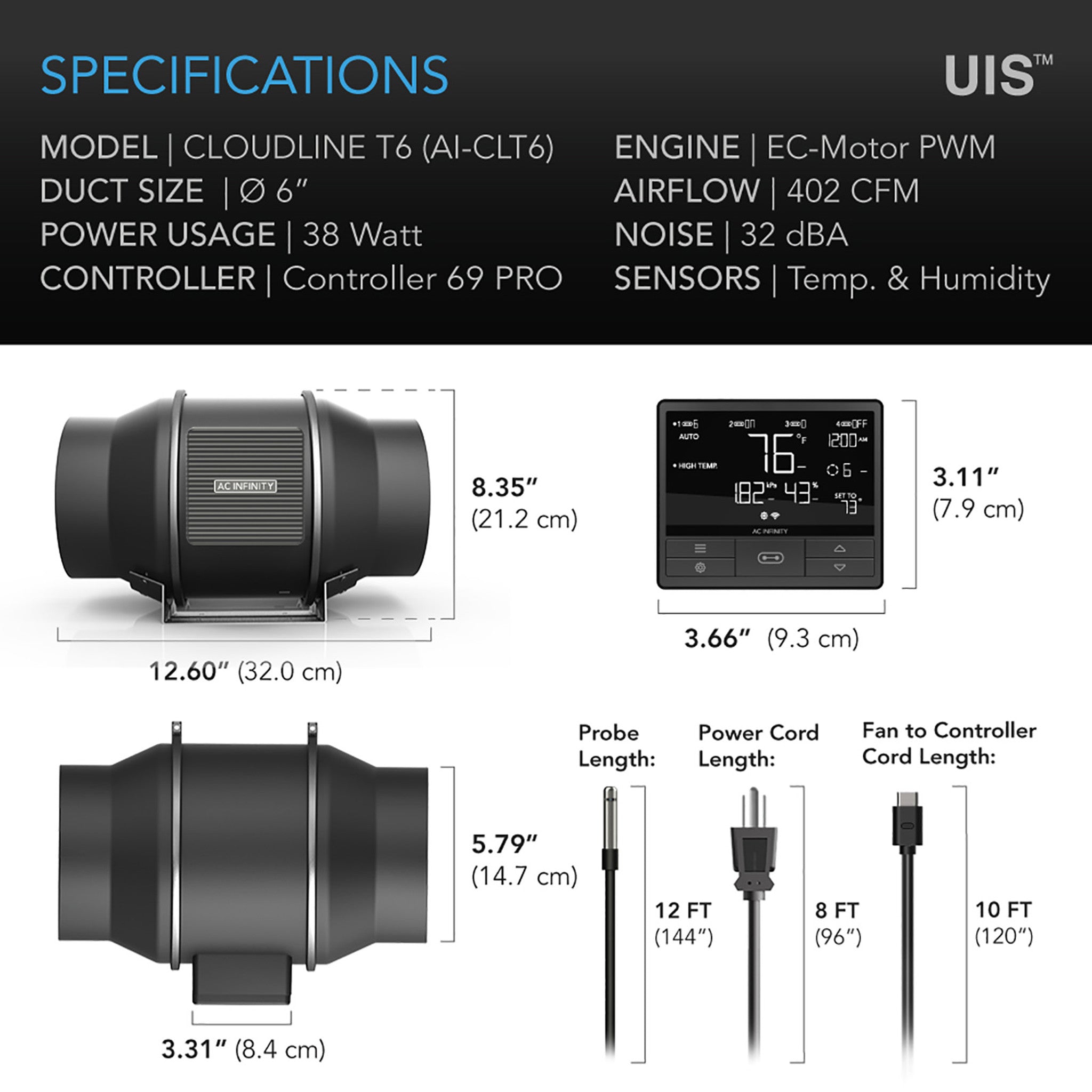

📐 Technical Specifications
-
Duct Size: 6”
-
Airflow: 402 CFM
-
Noise Level: 32 dBA
-
Static Pressure: 503 Pa
-
Motor Type: PWM-Controlled EC Motor
-
Max Power Draw: 70W
-
Controller Cable Length: 10 ft
-
Plug Cable Length: 8 ft
-
Sensor Probe Length: 12 ft
-
Ingress Protection: IP44
-
Mounting Positions: Horizontal or Vertical
-
Expected Lifetime: 67,000 Hours
📦 What’s Included
-
1 x CLOUDLINE T6 Inline Fan
-
1 x CONTROLLER 69 PRO (WiFi-enabled)
-
1 x Sensor Probe (12ft)
-
Installation Hardware & User Manual
✅ Ideal For:
-
Grow rooms & hydroponic tents 🌿
-
AV equipment & server closet cooling 💻
-
Odour control & carbon filter integration 🚫🌬️
-
Smart home HVAC systems 🏠
🌱 Take Control of Your Grow Environment
Smart automation. Quiet operation. Reliable performance. Only with CLOUDLINE T6 from Green Spirit Hydroponics.
| Feature / Model | A6 – Basic | S6 – Pro | T6 – Smart |
|---|---|---|---|
| Airflow (CFM) | 352 CFM | 402 CFM | 402 CFM |
| Noise Level | 34 dBA | 32 dBA | 32 dBA |
| Static Pressure | 394 Pa | 503 Pa | 503 Pa |
| Speed Control | 10-Speed Dial | 10-Speed Dial | Dynamic (via Smart Controller) |
| Controller Type | Basic Wired Dial | Smart Speed Controller | CONTROLLER 69 PRO (WiFi, VPD, Humidity, Temp) |
| Smart WiFi App Access | ❌ | ❌ | ✅ |
| Humidity & VPD Monitoring | ❌ | ❌ | ✅ |
| Custom Schedules / Cycles | ❌ | Limited | ✅ |
| EC Motor (PWM Controlled) | ✅ | ✅ | ✅ |
| UIS™ Compatible | ✅ | ✅ | ✅ |
| Mounting Options | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical |
| IP Rating | IP44 | IP44 | IP44 |
| Fan Bearings | Dual Ball | Dual Ball | Dual Ball |
| Lifespan | 67,000 Hours | 67,000 Hours | 67,000 Hours |
