Description
The Cloudray S6 is the next evolution in grow tent airflow management — engineered for power, precision, and control. Purpose-built for grow environments, this 6” fan delivers dynamic, targeted circulation with unmatched durability and smart functionality, making it the perfect addition to any grow tent setup.
Key Features:
-

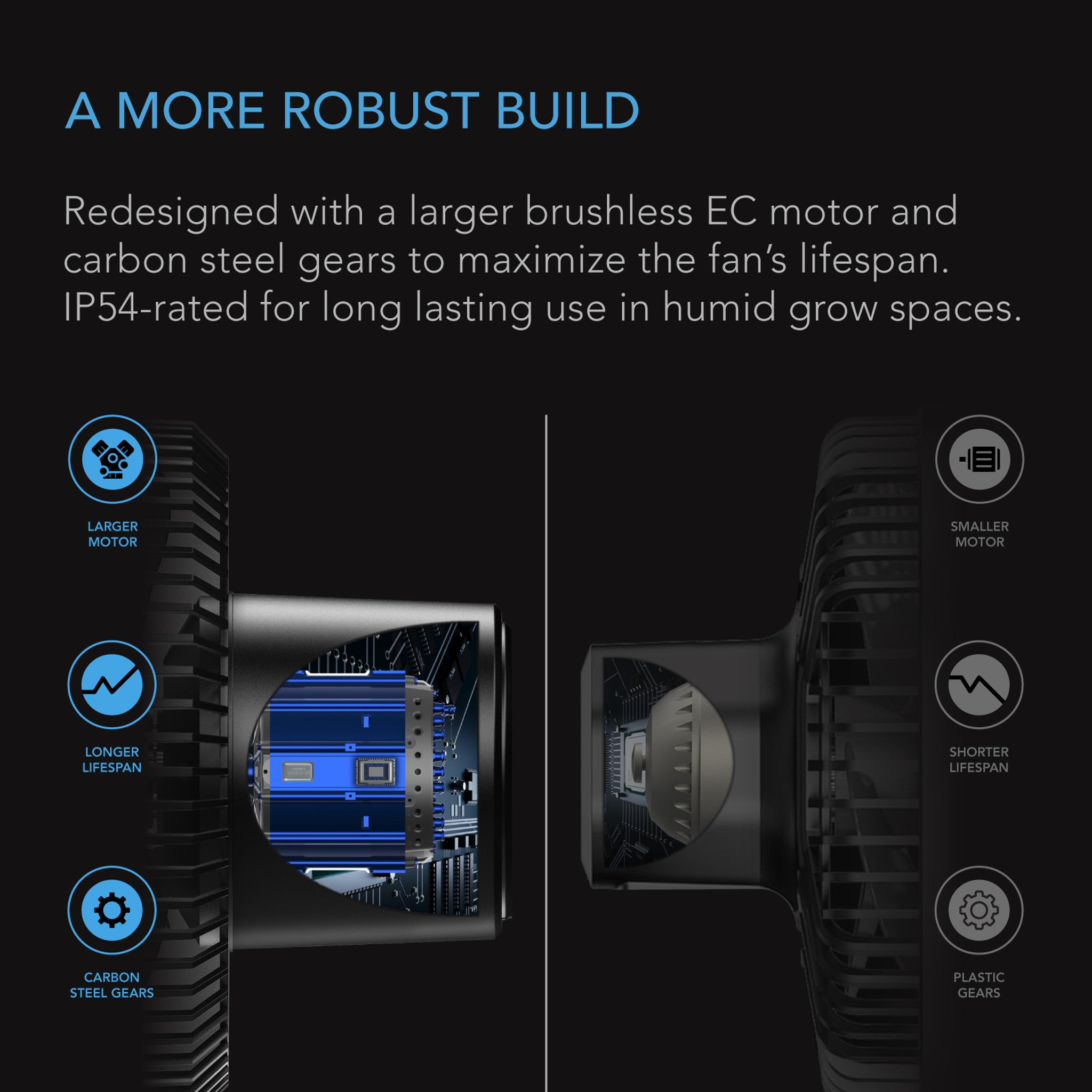

✅ High-Performance EC Motor
Designed for longevity and power, the S6 features a brushless electronically commutated (EC) motor, carbon steel gears, and dual-ball bearings for quiet, efficient, and long-lasting operation. -

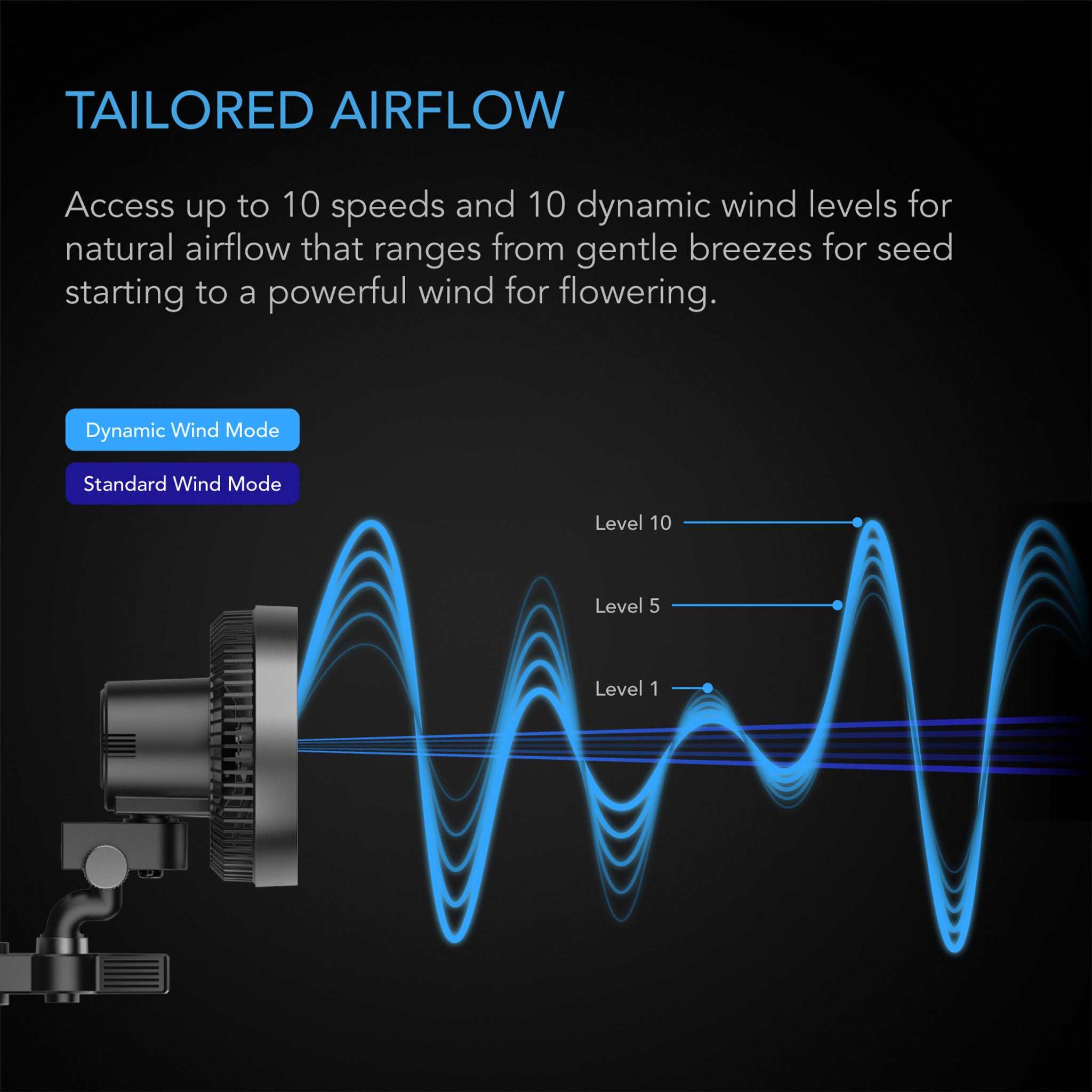

✅ Smart Airflow Customization
Includes 10 speed settings and 10 dynamic wind modes to mimic natural outdoor conditions — from soft breezes for seedlings to stronger airflow for vegetative and flowering stages. -

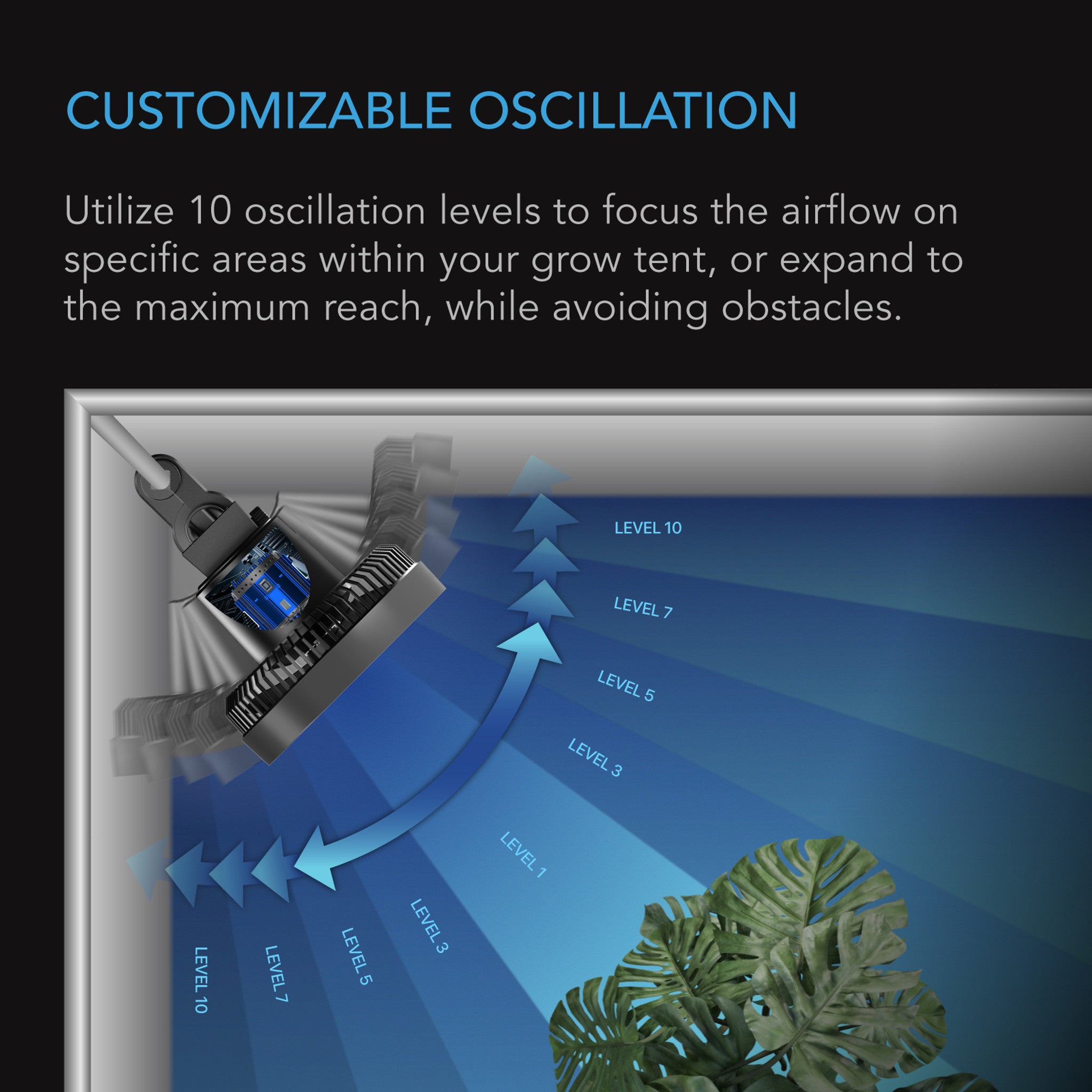

✅ Automatic Oscillation with 10 Ranges
Automatically oscillates across 10 user-selectable rotation ranges, allowing you to direct airflow toward specific plants or achieve full tent coverage while avoiding light fixtures or other obstacles. -
✅ Smart Controller Compatible (UIS™ Platform)
Seamlessly integrates with AC Infinity’s UIS™ controllers and AC Infinity App (via WiFi, controllers sold separately), giving you access to climate-based automation, scheduling, and remote monitoring. -
✅ IP54-Rated Durability
Built to withstand high humidity and heat, this fan is IP54-rated and ETL-certified (Certificate #5027708), ensuring reliable, safe operation in the toughest growing conditions. -

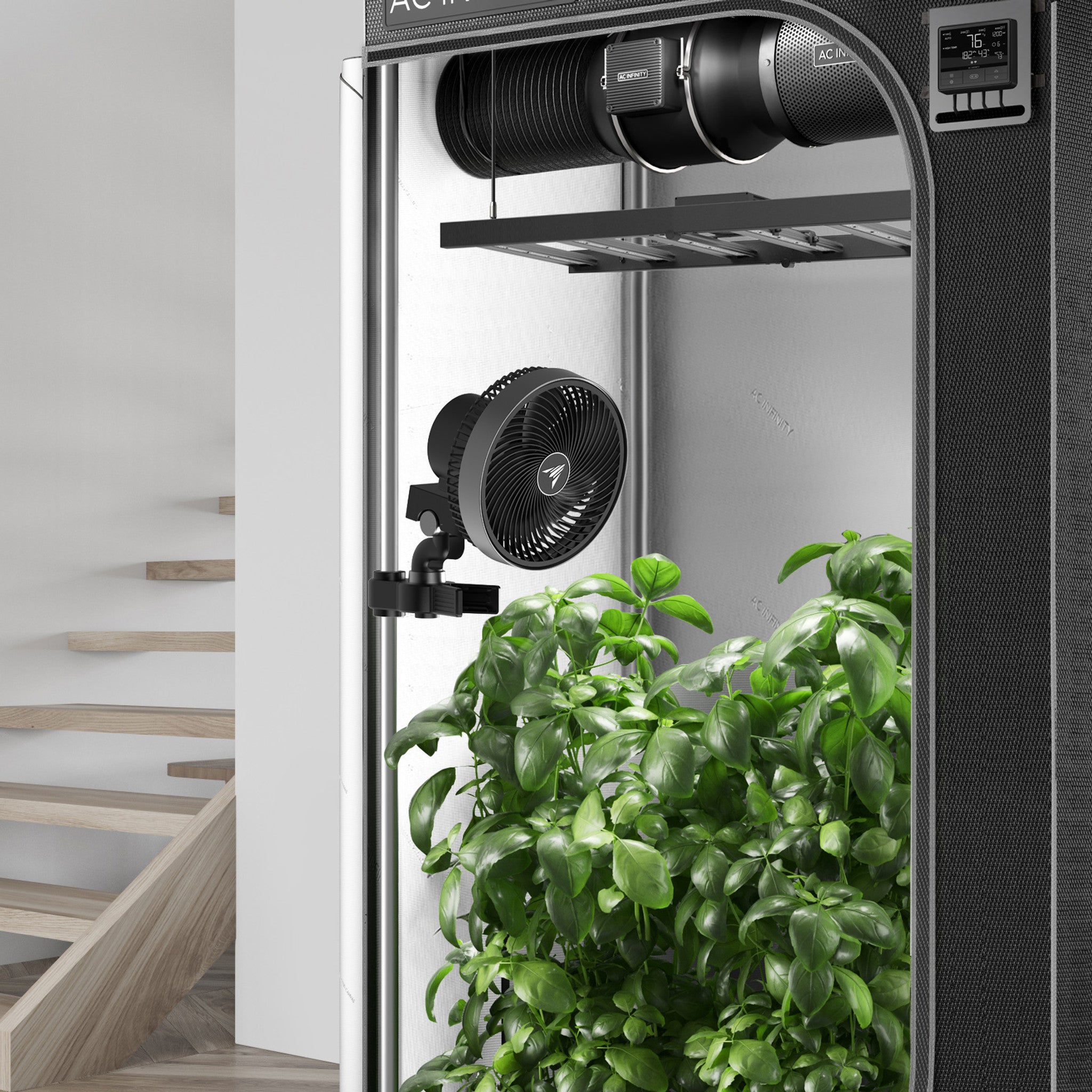

✅ Secure & Versatile Mounting
Features a space-saving clamp design for easy mounting on grow tent poles, with horizontal or vertical positioning and a 55° tilt for maximum airflow control.

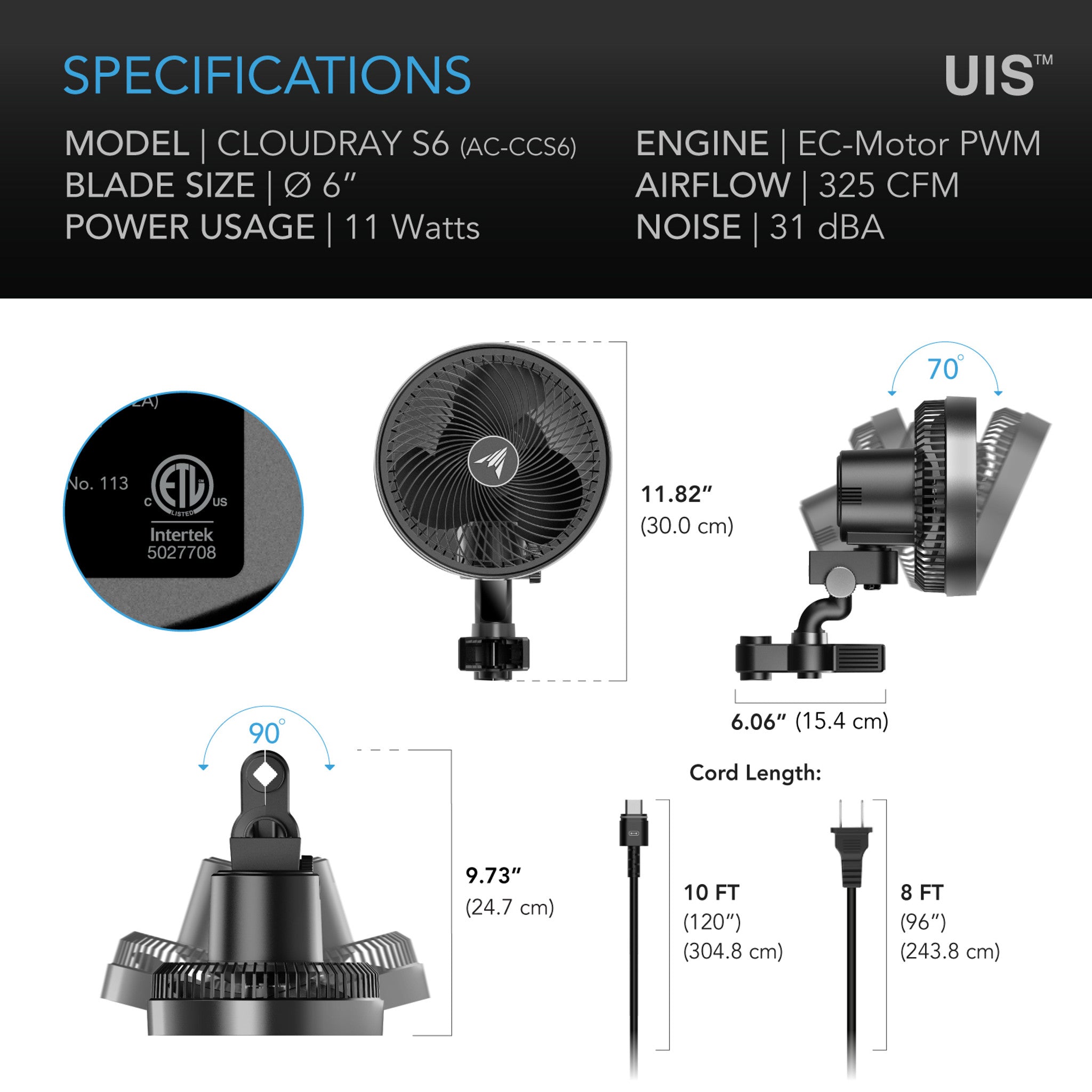

Specifications:
| Specification | Details |
|---|---|
| Model | AC-CCS6 |
| Manufacturer | AC Infinity Inc. |
| UPC | 819137022423 |
| Impeller Size | 6" |
| Max Airflow | 325 CFM |
| Noise Level | 31 dBA |
| Static Pressure | 25 Pa |
| Power Consumption | 11W |
| Current | 0.14 A |
| Voltage Range | 100–240V AC |
| Operating Temp | 32 to 140°F |
| Humidity Tolerance | 35–85% RH |
| Waterproof Rating | IP-54 |
| Fan Bearings | Dual Ball Bearing |
| Oscillation | Automatic (10 ranges) |
| Mounting | Horizontal / Vertical |
| Rotation Range | 90° |
| Tilt Angle | 55° |
| Cord Length | 96 inches (8 feet) |
| Total Dimensions | 9.73 x 11.82 in (24.7 x 30.0 cm) |
| Life Expectancy | 67,000 hours |
Whether you're optimizing airflow for seedlings, clones, or mature flowering plants, the Cloudray S6 is your all-in-one solution for reliable, customizable, and intelligent circulation.
