Description
AC Infinity Cloudray S9 – 9” Oscillating Grow Tent Clip Fan
The Cloudray S9 is the most powerful and advanced clip-on fan in AC Infinity’s lineup — purpose-built for complete airflow control in large grow spaces. With intelligent features, top-tier motor engineering, and a wide oscillation range, it delivers unmatched performance for growers who demand precision and durability.
Key Features:
-

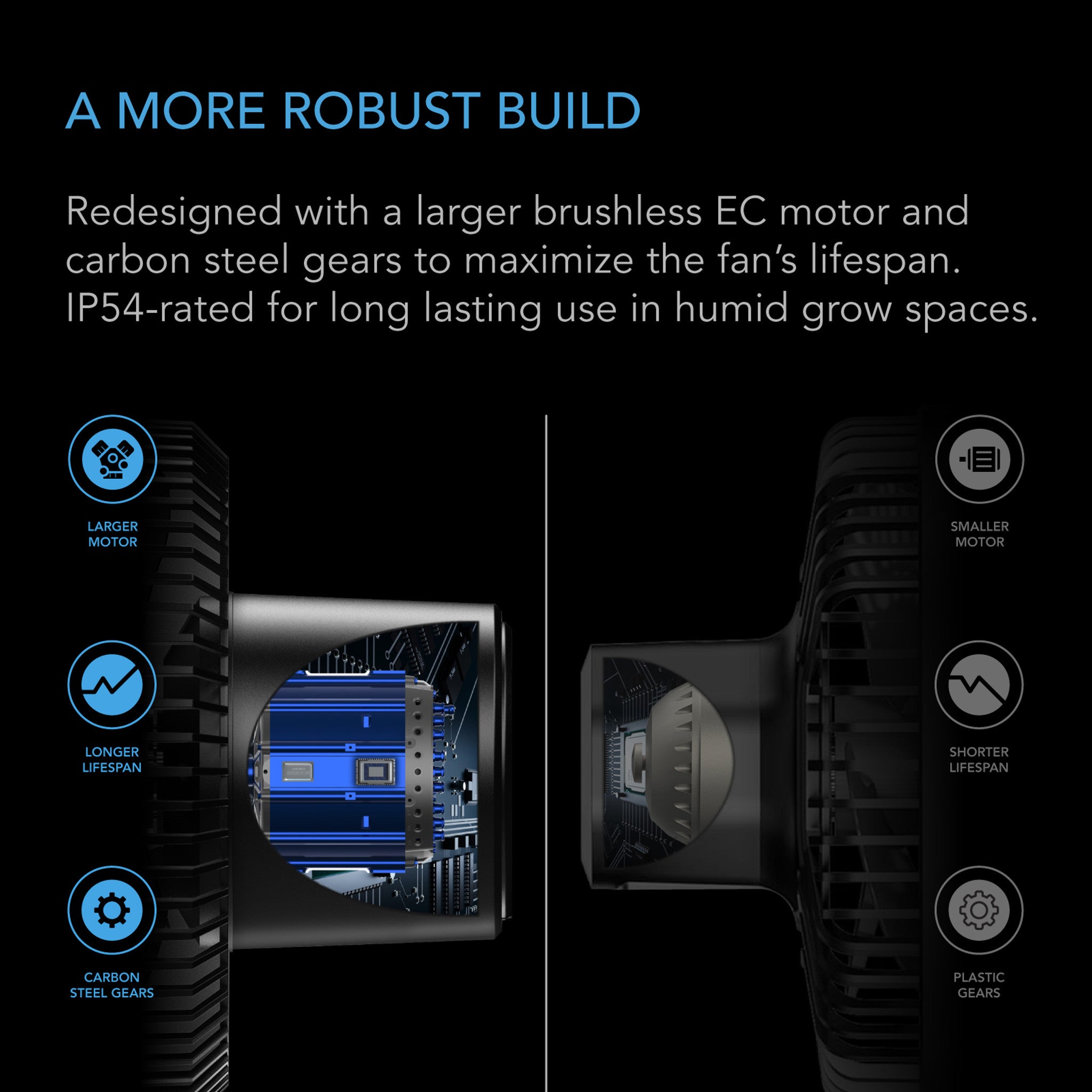

✅ Oversized EC Motor for Maximum Lifespan
Engineered with a brushless EC motor, carbon steel gears, and dual-ball bearings, the S9 delivers powerful circulation while extending fan and oscillation lifespan — even under continuous high-humidity use. -

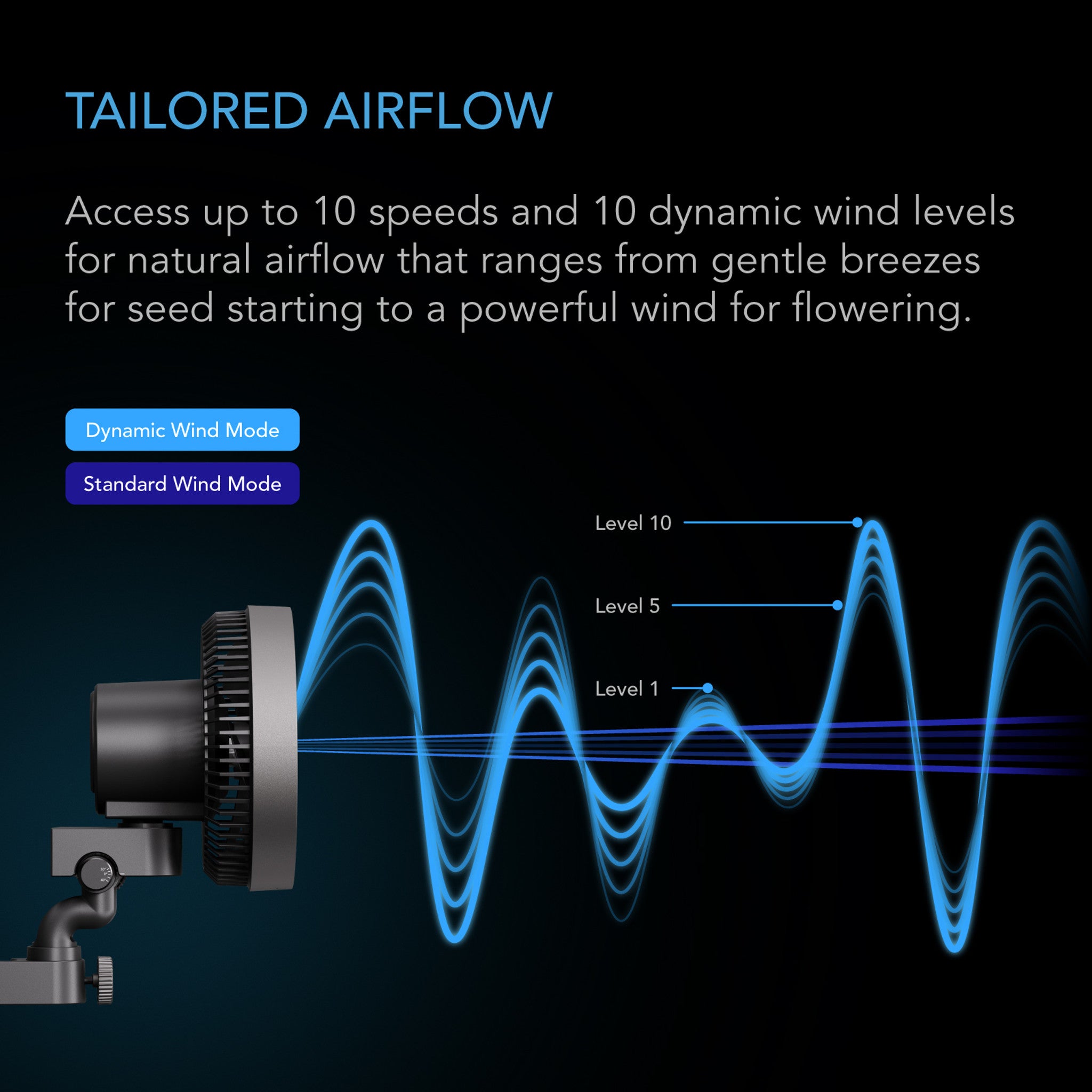

✅ 10 Speeds, 10 Wind Modes, 10 Oscillation Ranges
Customize your airflow like never before with 10 speed settings, 10 dynamic wind modes, and 10 oscillation ranges — ideal for each stage of plant development, from germination to flowering. -

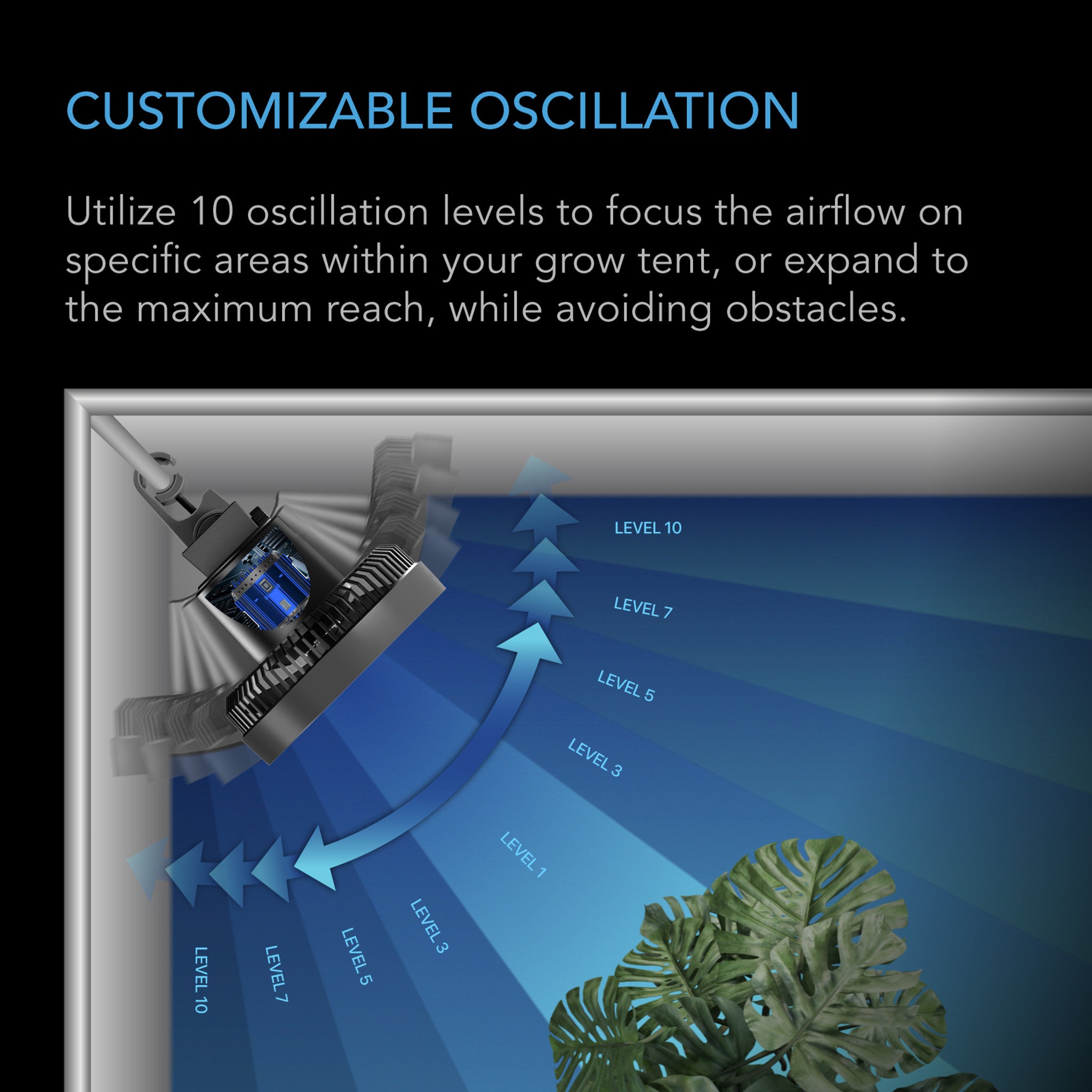

✅ Automatic Oscillation with Obstacle Avoidance
The wide oscillation range can be fine-tuned to avoid obstacles like lights or poles, delivering airflow exactly where your plants need it most. -
✅ UIS™ Platform Compatible with Smart App Control
Seamlessly integrates with AC Infinity’s UIS™ controllers (sold separately) and the AC Infinity App over WiFi, enabling smart automation, timers, and remote climate management. -
✅ IP54-Rated & ETL Certified
Built for grow environments, the fan is IP54-rated for resistance to humidity and heat, and ETL-certified (Certificate #5027708) for safe, reliable operation. -
✅ Heavy-Duty Clamp Mount
The upgraded metal clamp offers a secure, compact fit for grow tent poles with both horizontal and vertical mounting options, while maintaining a low profile.

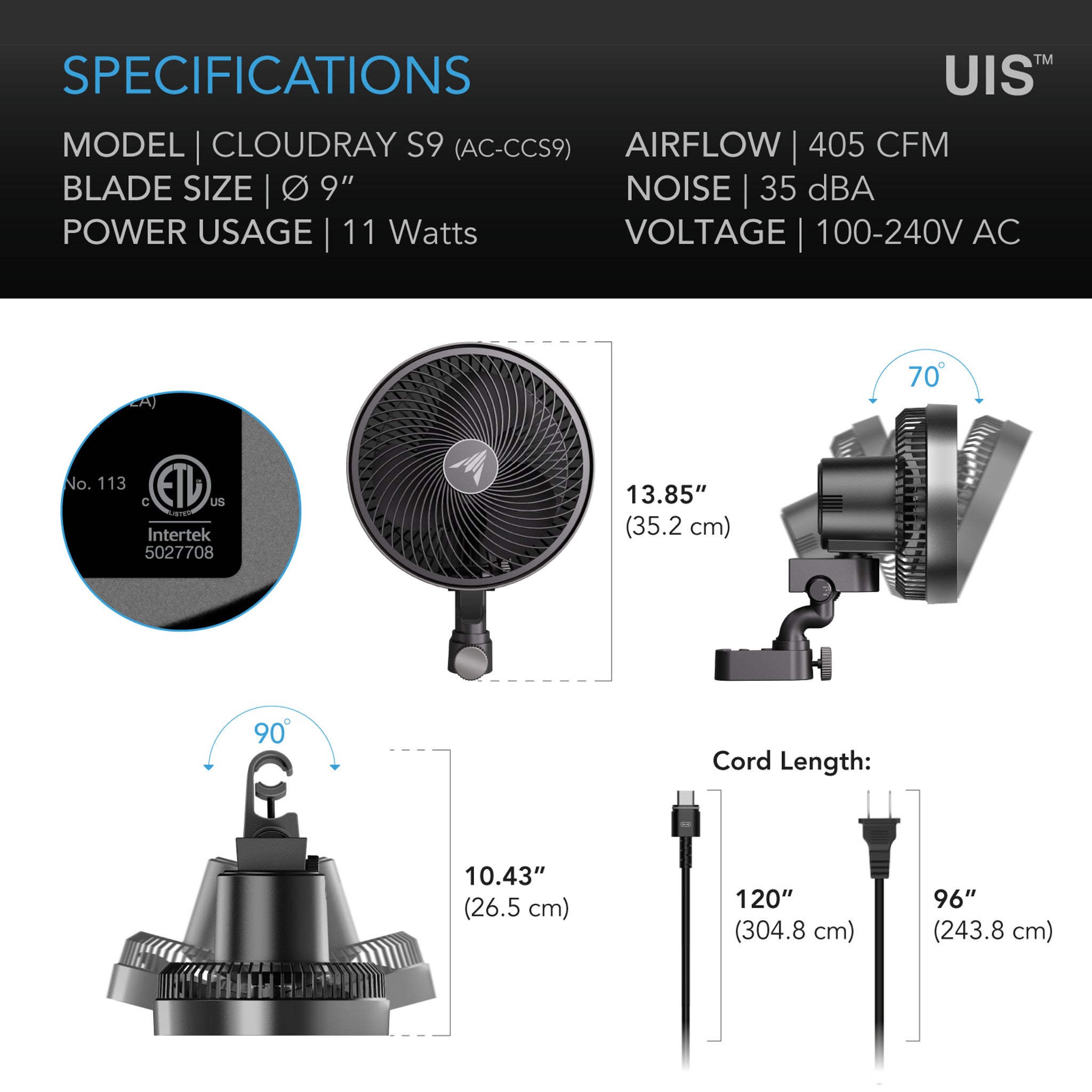

Specifications:
| Specification | Details |
|---|---|
| Model | AC-CCS9 |
| Manufacturer | AC Infinity Inc. |
| UPC | 819137022461 |
| Impeller Size | 9" |
| Max Airflow | 405 CFM |
| Noise Level | 35 dBA |
| Static Pressure | 25 Pa |
| Power Consumption | 11W |
| Current | 0.15 A |
| Voltage Range | 100–240V AC |
| Operating Temp | 32 to 140°F |
| Humidity Tolerance | 35–85% RH |
| Waterproof Rating | IP-54 |
| Fan Bearings | Dual Ball Bearing |
| Oscillation | Automatic (10 levels) |
| Mounting | Horizontal / Vertical |
| Rotation Range | 90° |
| Tilt Angle | 55° |
| Cord Length | 96 inches (8 feet) |
| Total Dimensions | 10.43 x 13.85 in (26.5 x 35.2 cm) |
| Life Expectancy | 67,000 hours |
Whether you're growing in a larger tent or just need advanced control over air circulation, the Cloudray S9 is your go-to solution for powerful, efficient, and intelligent airflow management.
