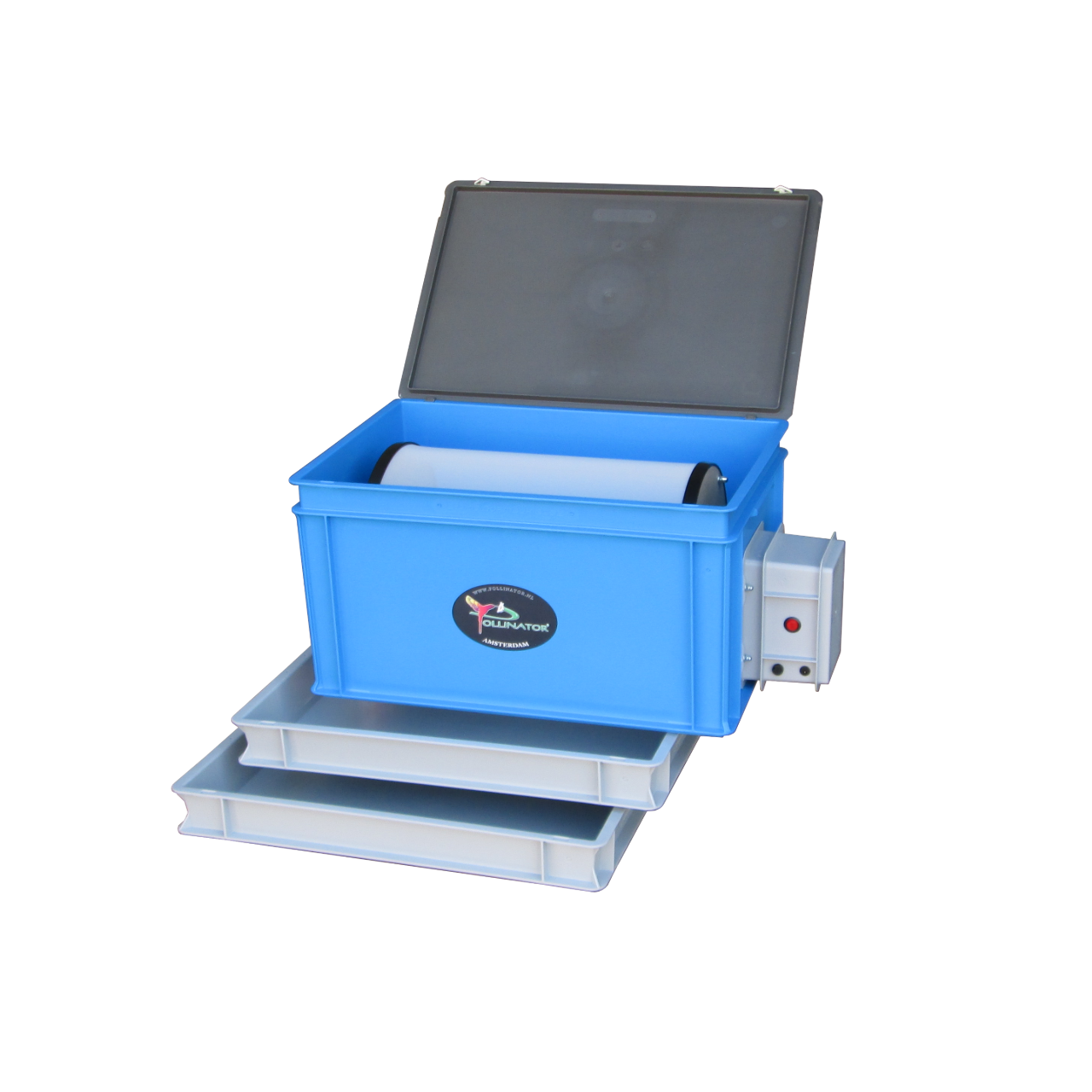

Pollinator P500 Bottomless Tumbler – Automatic 500g Dry Sifting Machine

The Pollinator P500 Bottomless Tumbler is a high-capacity automatic dry-sifting machine designed for efficient botanical screening, pollen separation and fine particle collection. Featuring a 500g batch capacity, an electric rotating mesh drum and an innovative bottomless collection system, this machine offers a convenient solution for processing suitable dried botanical materials.

Unlike a standard enclosed tumbler, the P500 Bottomless features an open-bottom collection arrangement that allows screened particles to fall directly into removable trays beneath the machine. This makes it easier to collect material at different stages without repeatedly removing the screening drum.

Supplied with a 150-micron screening drum and two food-grade collection trays, the P500 Bottomless combines automatic operation with convenient material handling. Additional Pollinator Extra Drums are available separately for users who require alternative screening sizes.

Key Features & Benefits

• 500g batch capacity: Suitable for processing up to approximately 500g of dried botanical material per cycle.
• Bottomless collection design: Allows convenient collection of screened material without removing the drum.
• Two collection trays included: Removable food-grade trays help keep different collection rounds separate.
• 150-micron screen: Supplied with a standard mesh screening barrel.
• Automatic electric operation: Motor-driven rotation reduces the need for manual sieving.
• Interchangeable drums: Compatible P500 screening drums are available in alternative micron ratings.
• Food-grade construction: Manufactured using food-grade plastic and stainless steel.
• Dry processing: Mechanical screening without the need for water or liquid solvents.
• Cold-environment compatibility: Designed for suitable temperature-controlled processing environments.
• Easy maintenance: Removable collection trays and screening components simplify routine cleaning.

What Makes the P500 Bottomless Different?

The main advantage of the Pollinator P500 Bottomless Tumbler is its combination of increased processing capacity and an accessible collection system.

The bottomless configuration allows fine screened particles to fall into collection trays positioned beneath the rotating drum. This enables material to be collected between screening rounds without repeatedly dismantling the barrel.

The two supplied trays are particularly useful when separating material collected at different stages of processing.

Benefits of the Bottomless Collection System

• Convenient access to collected botanical particles
• Reduced need to remove the screening barrel
• Two removable collection trays supplied
• Separate collection of different screening rounds
• Practical for repeatable botanical processing sessions
• Compatible with additional collection trays where available

Automatic Dry Sifting for Botanical Materials

The Pollinator P500 Bottomless Dry Sifting Machine uses a motor-driven cylindrical mesh drum to separate fine particles from larger dried plant material.

As the barrel rotates, suitable botanical material moves within the mesh drum. Smaller particles pass through the screen, while larger material remains inside the barrel.

The separated particles fall into the collection tray beneath the machine, providing a convenient method of collecting screened material.

This automatic mechanical process offers a practical alternative to manually shaking dried material through a stationary sieve.

500g Batch Capacity for Larger Processing Requirements

With an approximate capacity of 500g of dried botanical material per batch, the P500 Bottomless provides more than three times the nominal batch capacity of the smaller P150 Bottomless model.

This makes it suitable for users who require greater processing volume while retaining the convenience of a compact automatic screening system.

Actual working capacity may vary depending on the density, condition and characteristics of the material being screened.

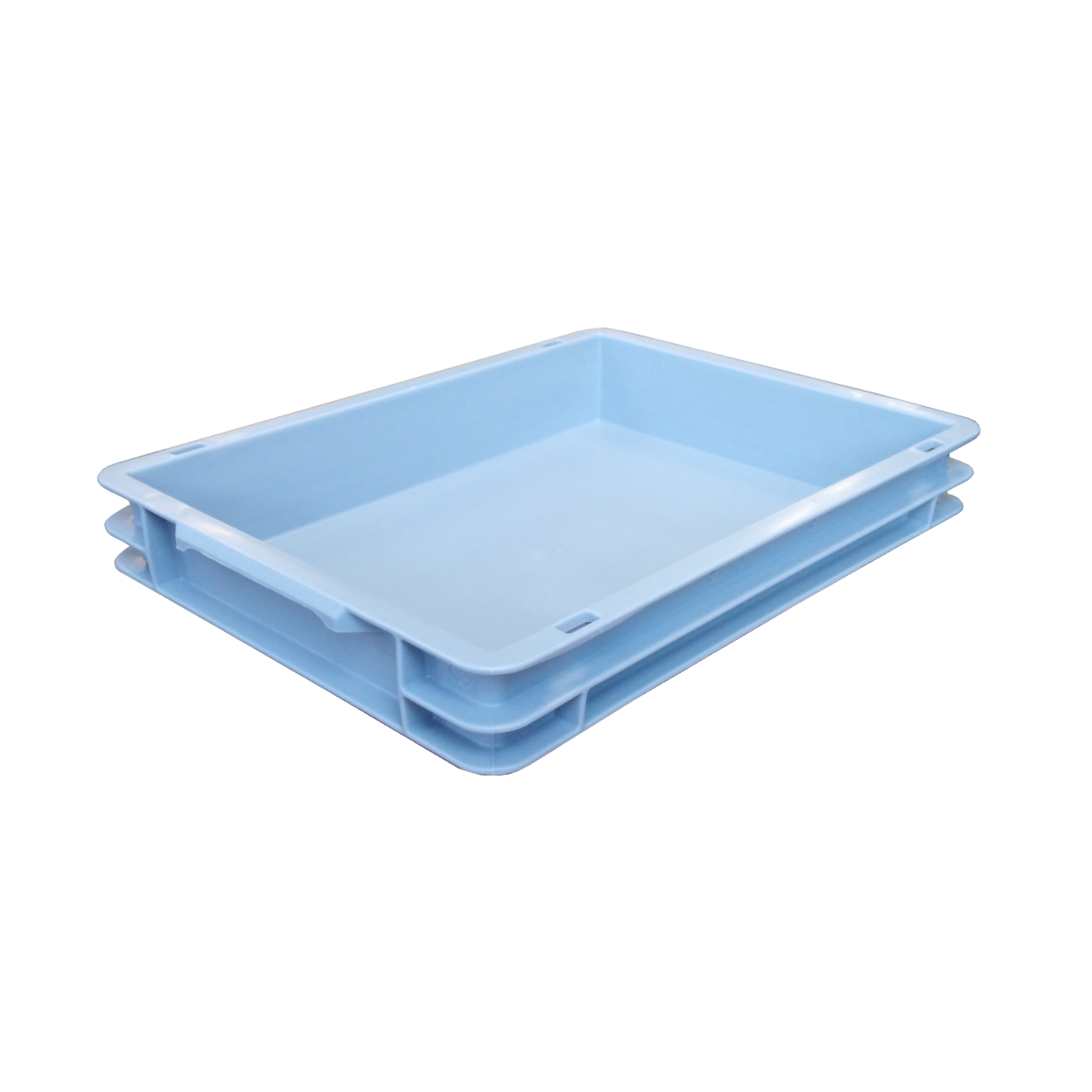

Includes Two Removable Collection Trays

The Pollinator P500 Bottomless includes two removable food-grade collection trays designed to sit beneath the rotating screening drum.

These trays make it easier to gather screened particles and organise material from different collection rounds.

Additional compatible stackable trays may be used to expand the collection arrangement, where available.

Please Note: Additional collection trays are sold separately and are not included with the standard machine.

150-Micron Screening Drum Included

The Pollinator P500 Bottomless is supplied with a standard 150-micron (150µm) screening drum.

The micron rating describes the approximate size of the mesh openings. Particles sufficiently small to pass through the screen are separated from larger material retained inside the barrel.

The supplied drum provides a practical starting point for a variety of compatible dry botanical screening applications.

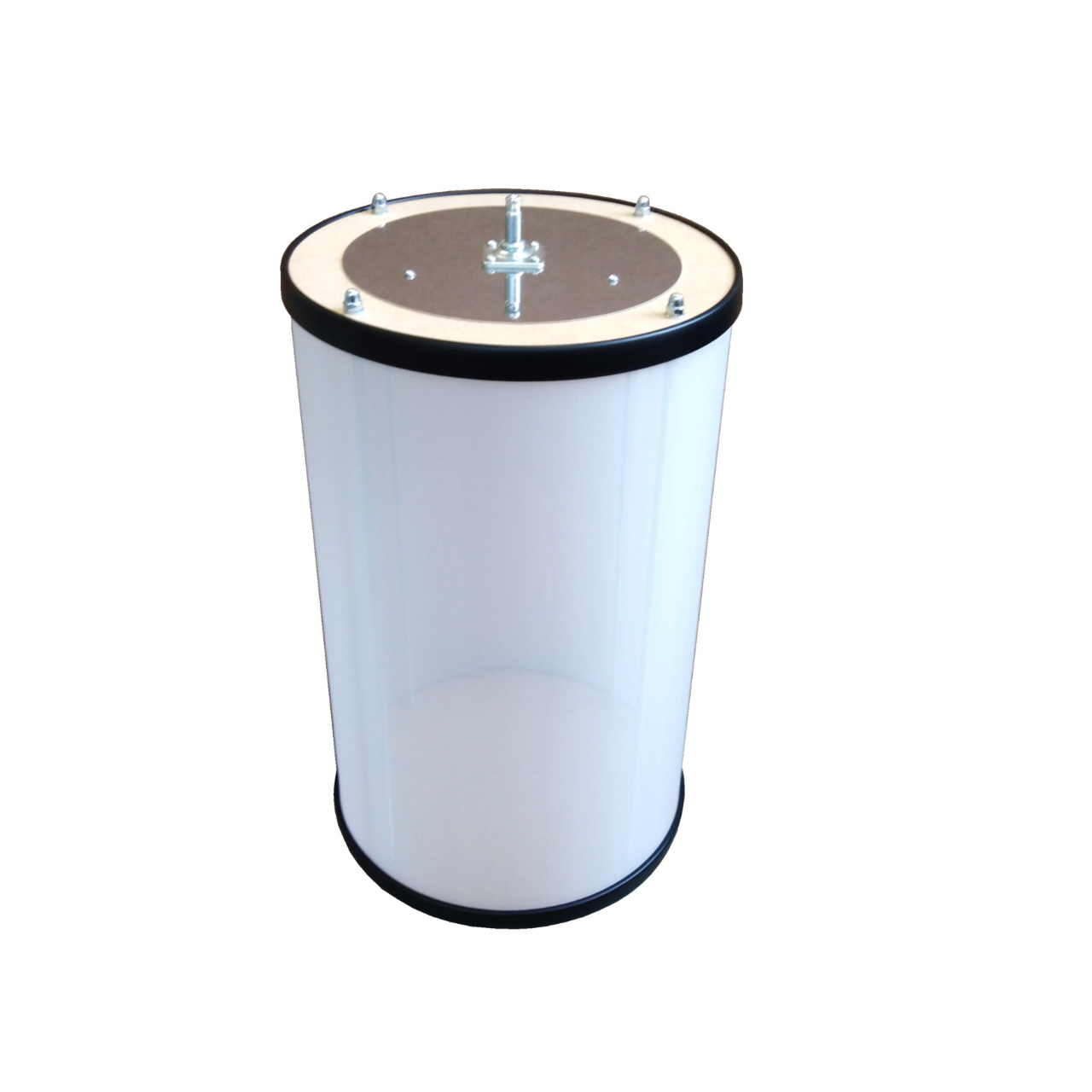

Compatible Pollinator Extra Drums – Available Separately

The Pollinator P500 Bottomless Tumbler is compatible with interchangeable screening drums, allowing users to select different mesh sizes for their botanical processing requirements.

Our Pollinator Extra Drum Range includes compatible replacement and additional barrels for the P500 model.

Available Micron Sizes

• 70 Micron: Fine particle screening.
• 90 Micron: Fine mesh separation.
• 120 Micron: Intermediate fine screening.
• 150 Micron: Standard screen size supplied with the machine.
• 185 Micron: Coarser particle screening.
• 220 Micron: Larger mesh openings for coarser screening.

Finer screens have smaller openings, while coarser screens allow larger particles to pass through.

Important: When ordering, select the P500 model and your preferred micron rating.

Shop Compatible Accessories: Pollinator Extra Drums – P500 Compatible Replacement Screening Barrels

Designed for Temperature-Controlled Processing

The Pollinator P500 Bottomless is designed for suitable temperature-controlled botanical processing environments, including compatible cold-room applications.

Cooler conditions may be useful when screening certain dried botanical materials, depending on their physical properties.

Always check that the operating environment is suitable for electrical equipment and avoid condensation. Ensure the machine is used according to the manufacturer's safety instructions.

Suitable for Botanical Screening & Material Preparation

The Pollinator P500 Bottomless Automatic Tumbler is suitable for a range of dry screening applications involving compatible botanical materials.

Typical Applications

• Dry screening of suitable botanical materials
• Pollen and fine particulate separation
• Processing dried aromatic herbs
• Herbal ingredient preparation
• Botanical sample screening
• Mechanical particle separation
• Research and material preparation
• Separate collection of screened material at different stages

How to Use the Pollinator P500 Bottomless Tumbler

1. Prepare the material: Ensure the dried botanical material is suitable for mechanical screening.
2. Select the screening drum: Use the included 150-micron barrel or install a compatible P500 replacement drum.
3. Inspect the machine: Check that the screening barrel is clean, undamaged and securely installed.
4. Position the collection tray: Ensure a supplied tray is correctly positioned beneath the screening drum.
5. Load the material: Add a suitable quantity without exceeding the recommended 500g capacity.
6. Secure the barrel: Close and secure the drum according to the manufacturer's instructions.
7. Begin screening: Operate the machine according to the supplied instructions.
8. Collect the material: Follow the manufacturer's procedure when changing collection trays between screening rounds.
9. Finish processing: Switch off and disconnect the machine before opening or removing the drum.
10. Clean after use: Remove remaining material and clean the screening drum and collection trays as recommended.

Pollinator P500 Bottomless Technical Specifications

Brand	Pollinator
Model	P500 Bottomless
Product Type	Automatic Bottomless Dry Sifting Tumbler
Operation	Electric Motor-Driven Rotating Drum
Batch Capacity	Approximately 500g
Standard Screen	150 Micron (150µm)
Compatible Extra Drum Sizes	70, 90, 120, 150, 185 and 220 Micron
Collection System	Bottomless Design with Two Removable Trays
Dimensions (L × W × H)	70 × 40 × 50cm
Weight	Approximately 10kg
Construction	Food-Grade Plastic and Stainless Steel
Power	Electric Motor
Applications	Botanical Dry Screening and Fine Particle Separation

What's Included?

• 1 × Pollinator P500 Bottomless Automatic Tumbler
• 1 × Standard 150-Micron Screening Drum
• 2 × Removable Food-Grade Collection Trays

Please Note: Additional screening drums and collection trays are sold separately.

Cleaning & Maintenance

• Disconnect the machine from the electrical supply before cleaning.
• Remove the drum and trays according to the manufacturer's instructions.
• Hand-wash suitable removable trays and drum screens using mild soap and warm water.
• Avoid damaging or distorting the screening mesh.
• Keep the motor and electrical components dry.
• Allow all cleaned components to dry completely before reassembly.
• Inspect the drum, moving components and electrical connections regularly.
• Store the machine in a clean, dry environment when not in use.

Why Choose the Pollinator P500 Bottomless?

The Pollinator P500 Bottomless Tumbler combines a larger 500g processing capacity with automatic electric operation and a convenient removable-tray collection system.

Its bottomless design makes it easier to organise separate screening rounds, while the standard 150-micron drum provides a ready-to-use configuration for suitable botanical materials.

With additional Pollinator Extra Drums available separately, users can customise their screening setup with alternative micron ratings.

Pollinator P500 Bottomless – Automatic 500g Botanical Dry Sifting

The Pollinator P500 Bottomless Automatic Dry Sifting Machine provides a practical solution for users requiring increased batch capacity, convenient material collection and mechanical botanical screening.

Featuring a 500g capacity, 150-micron screening drum, two removable collection trays and food-grade construction, the P500 Bottomless is designed for repeatable dry botanical processing.

Explore our Pollinator P500 Compatible Extra Drums to expand your screening options.
